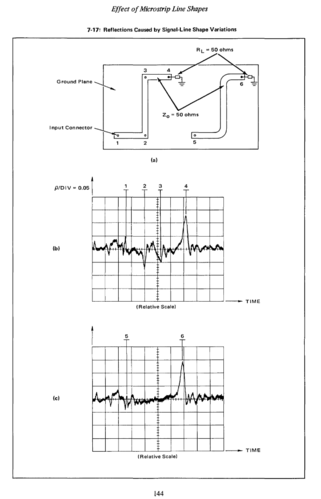

Interesting #motorola MECL document showing the effect of sharp angles in a #microstrip in a #TDR analysis. The effect seems to exist, but looks minor.
http://bitsavers.trailing-edge.com/components/motorola/_dataBooks/1989_Motorola_MECL_System_Design_Handbook_4ed.pdf PDF page 155
A Microwave Frequency Doubler - It is an age-old problem. You have a 2.5 GHz source and you want it at 5 GHz. You ... - https://hackaday.com/2021/10/18/a-microwave-frequency-doubler/ #frequencydoubler #radiohacks #microstrip #microwave #stripline #stripline #rf
It is an age-old problem. You have a 2.5 GHz source…

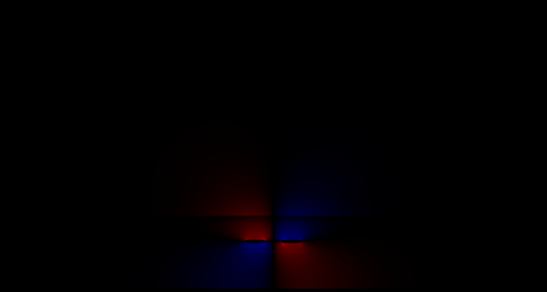

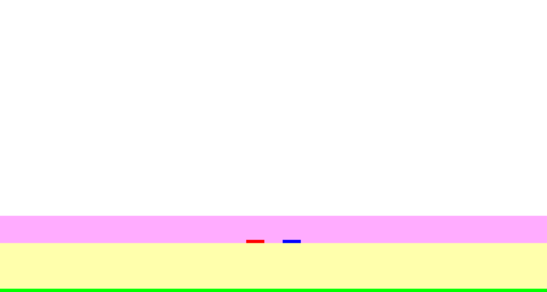

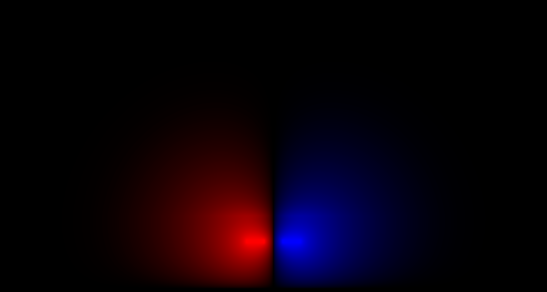

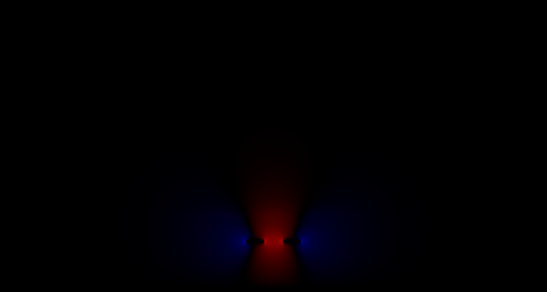

HackadayATLC (http://atlc.sourceforge.net/) appears to be good #opensource tool to design unusual PCB (micro)strip lines. But slow. P.s. Images of simulated 100 Ω edge coupled embedded #microstrip included.
