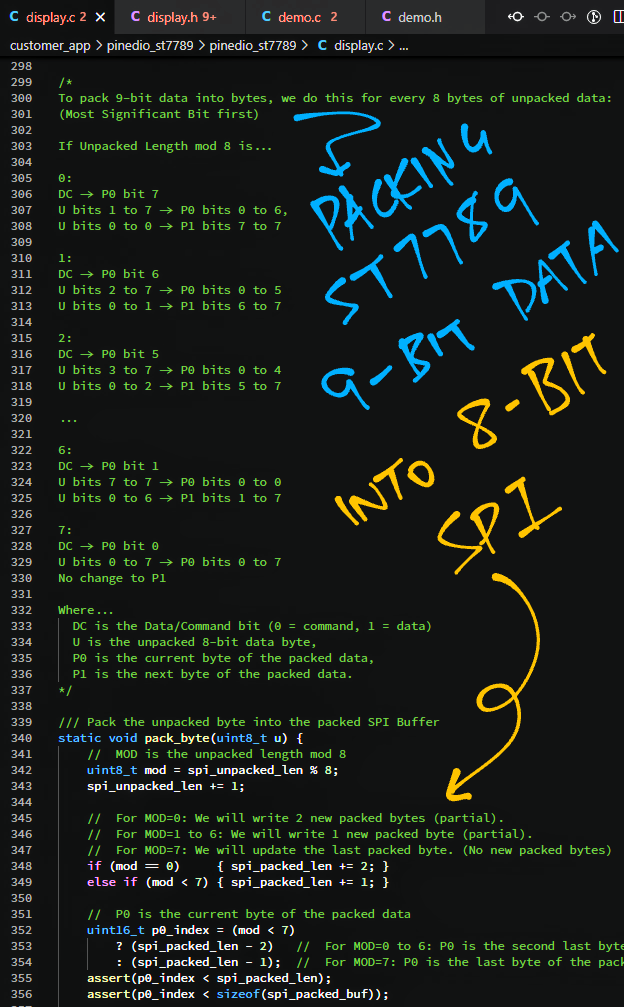

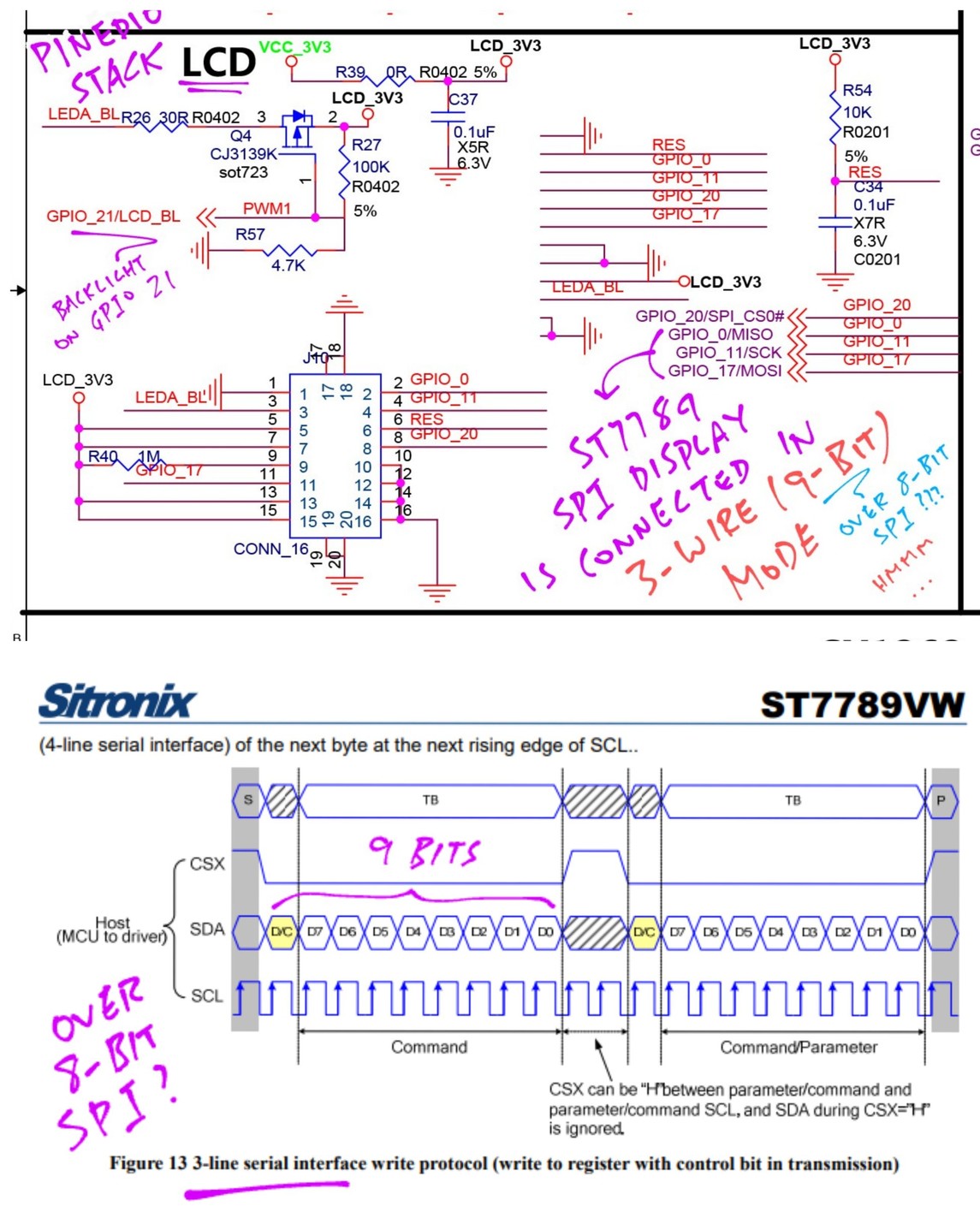

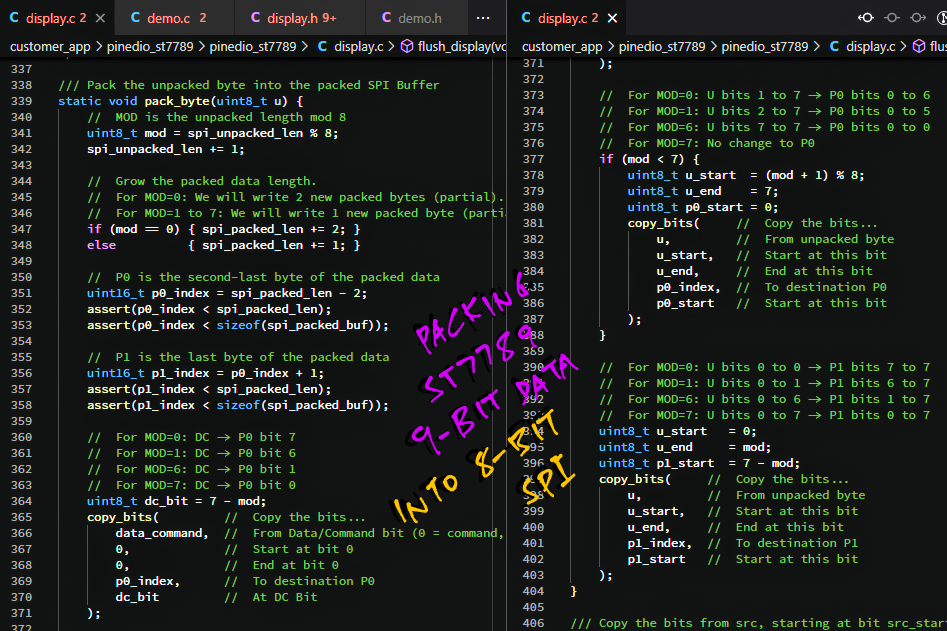

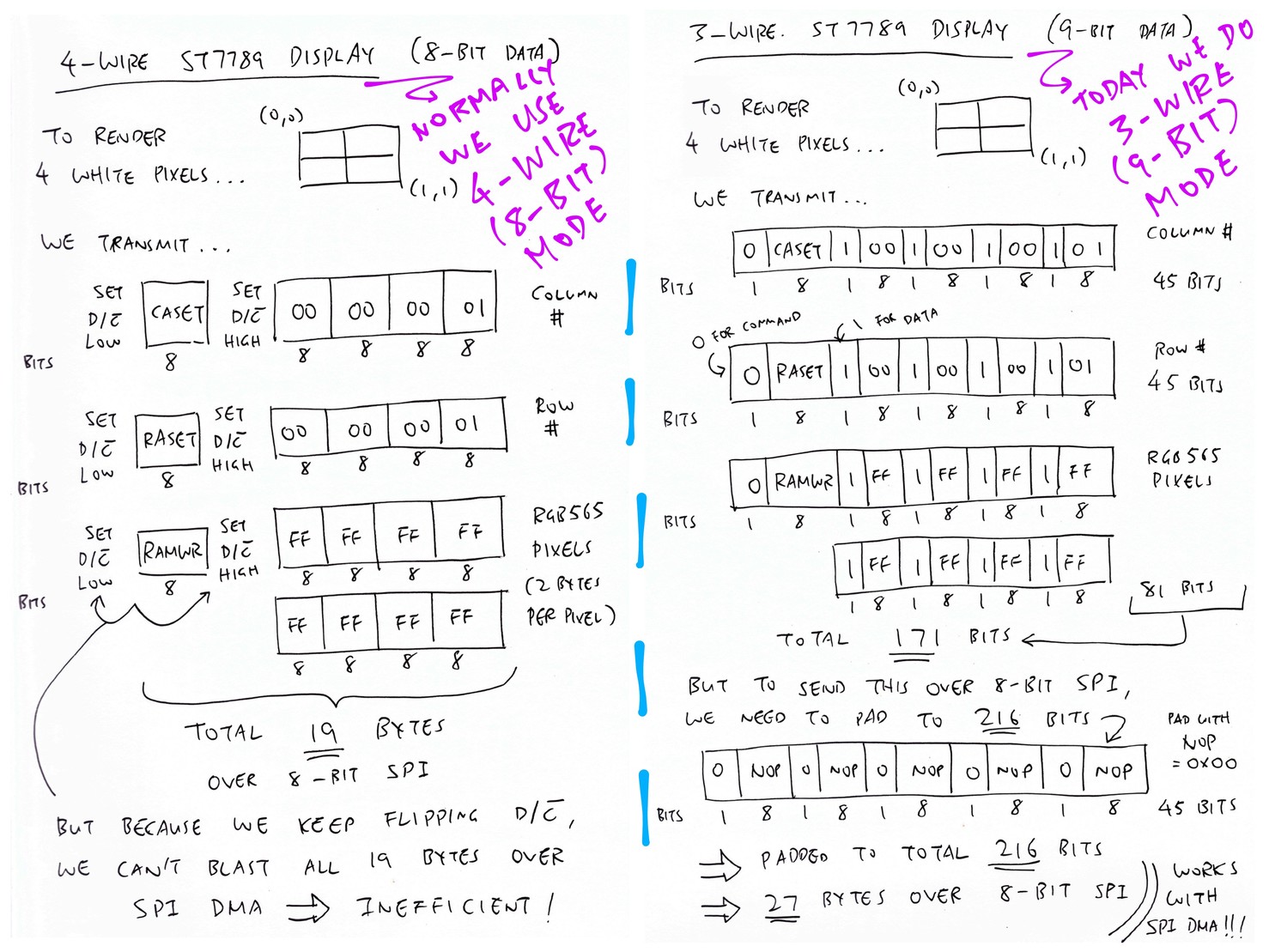

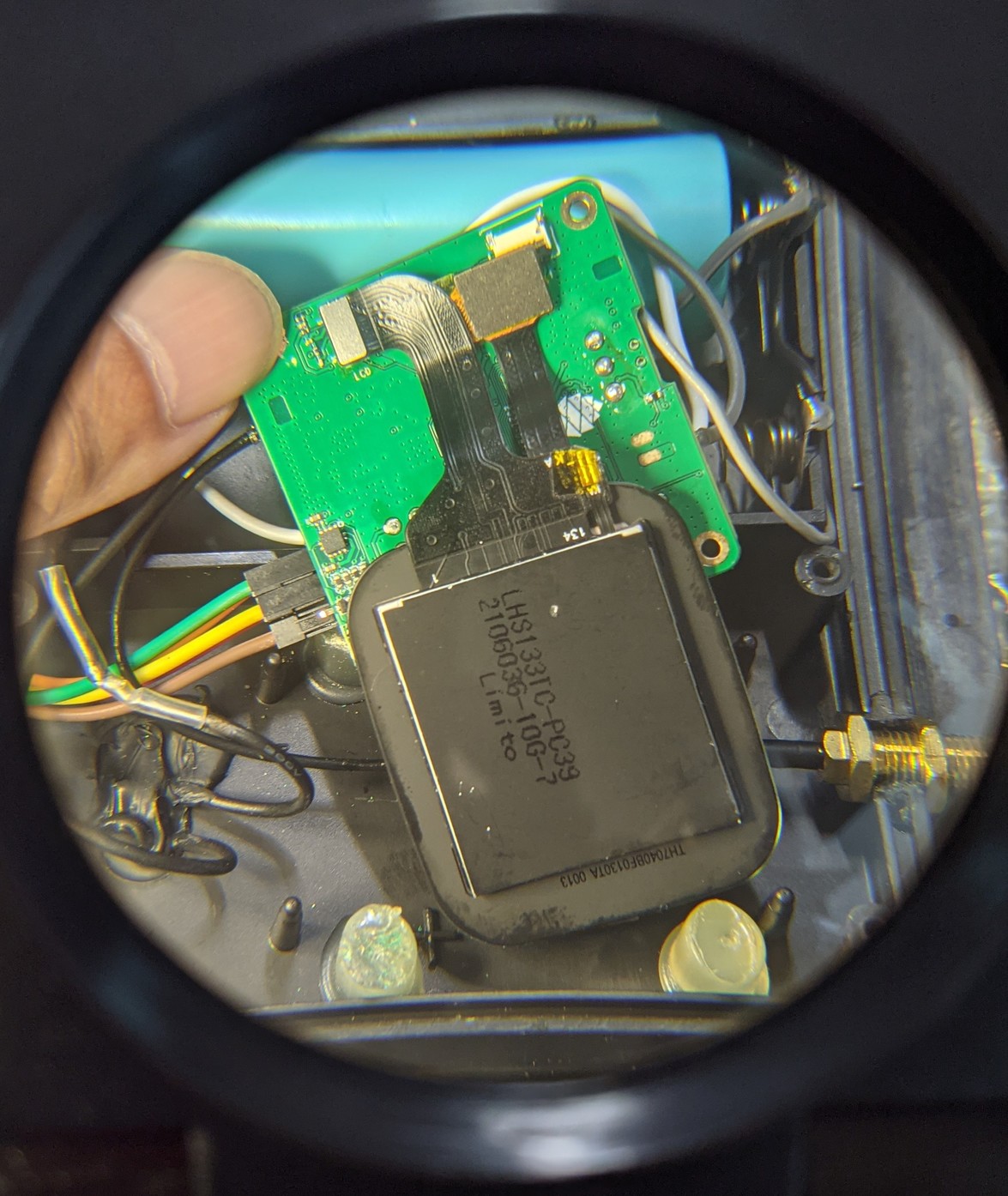

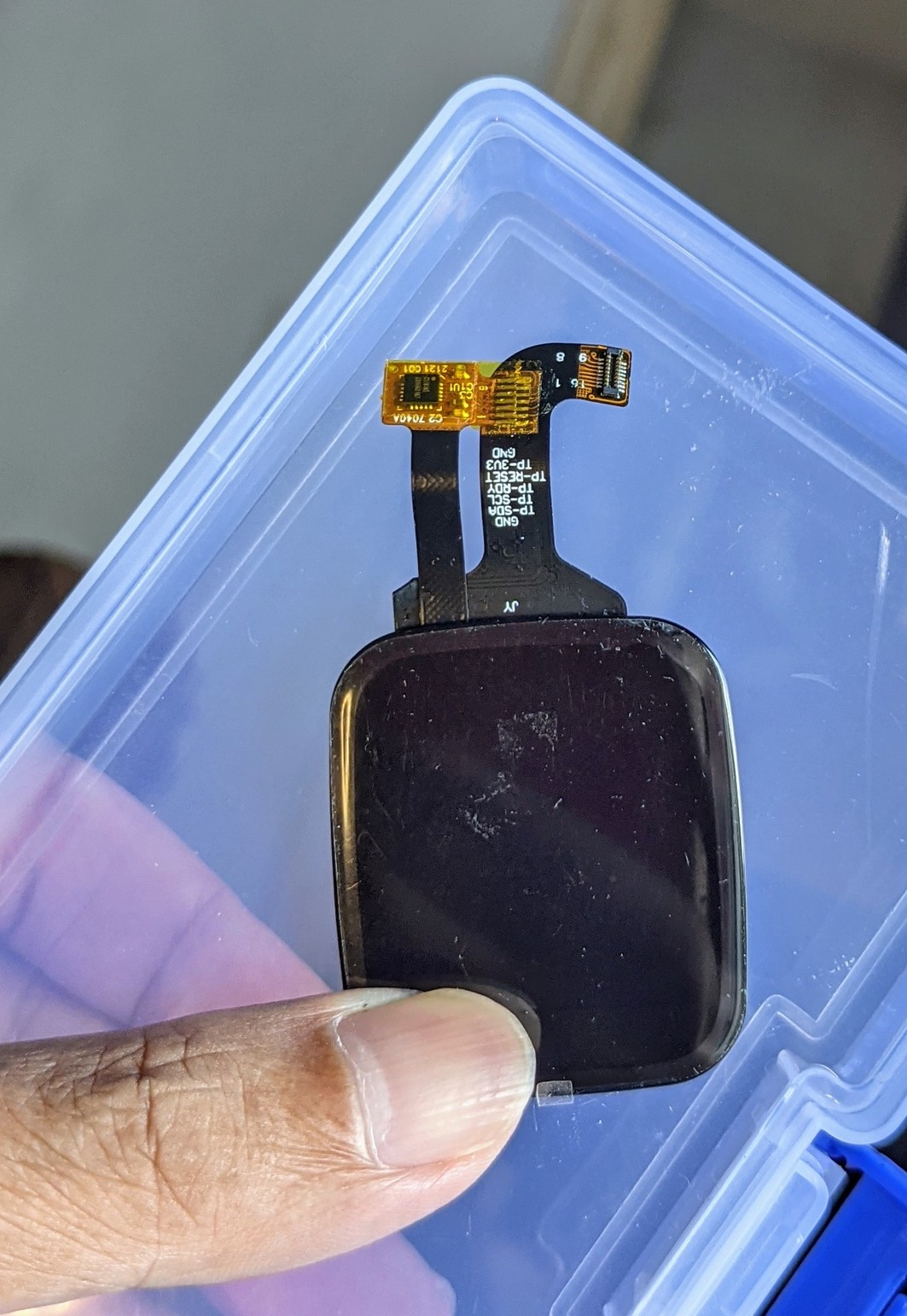

Normally we talk to #ST7789 SPI Display in 4-Wire (8-bit) Mode ... But today we do 3-Wire (9-bit) Mode ... With a sneaky packing hack

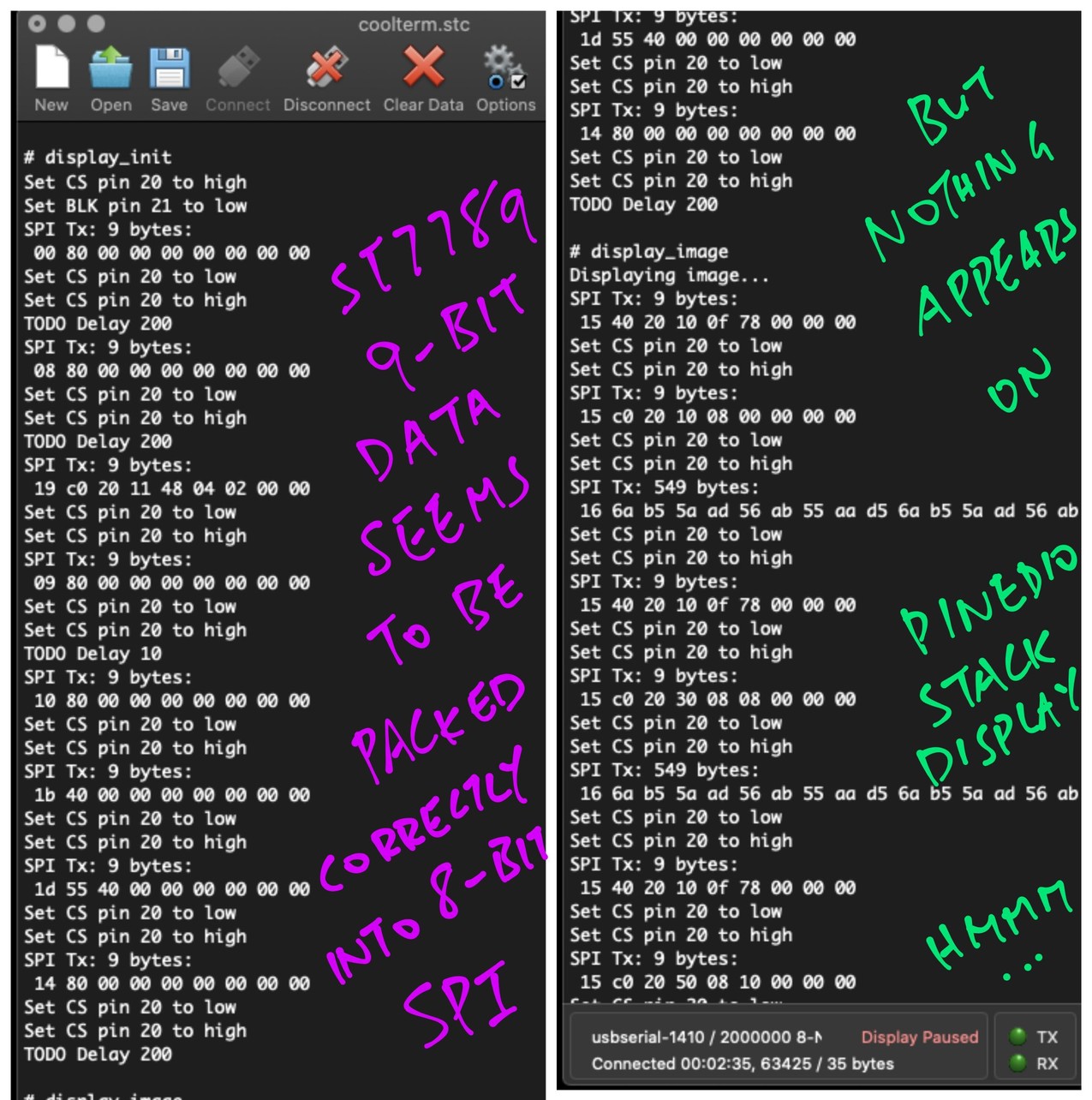

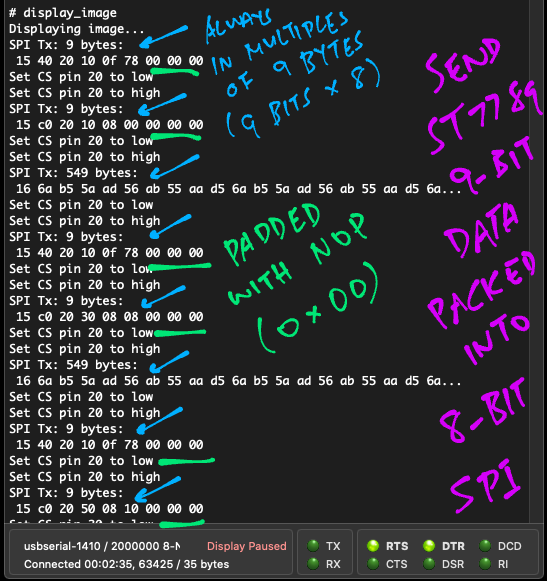

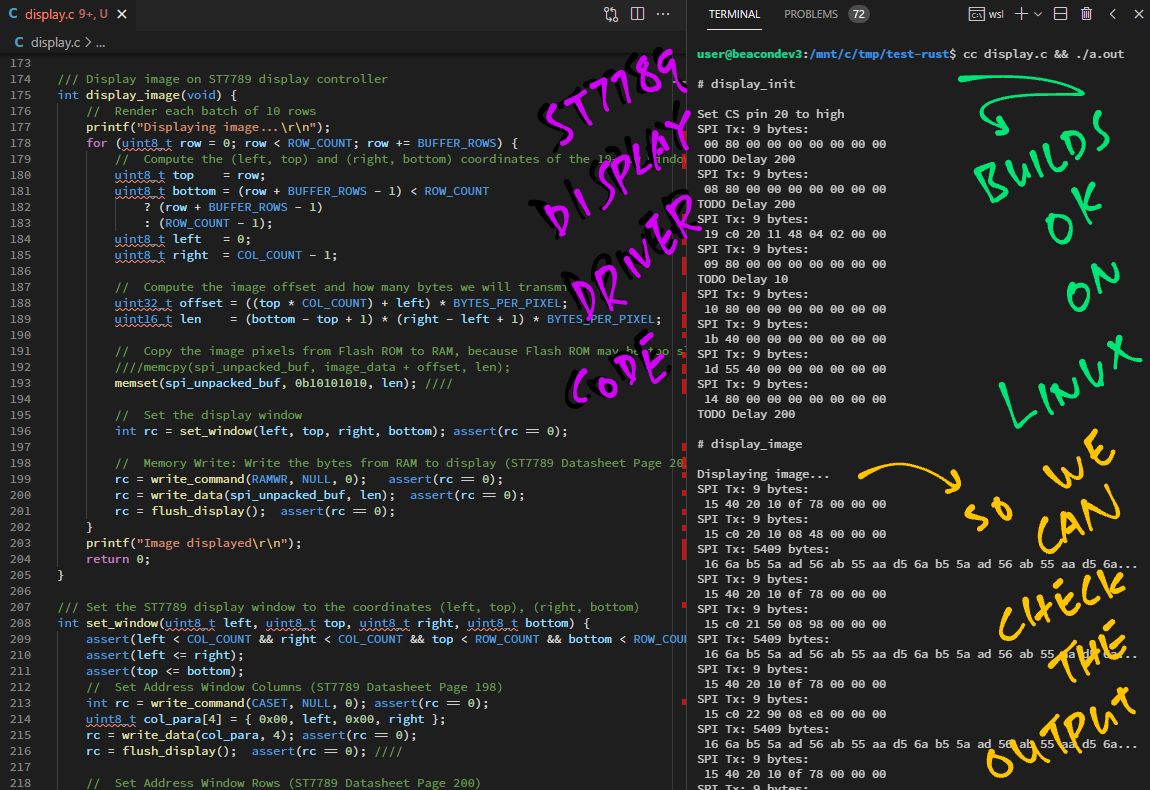

Verifying the packed #ST7789 9-bit data with a spreadsheet ... Our packing is indeed correct 🤔
https://docs.google.com/spreadsheets/d/1Qy0MjU79s__wzTAFwpTYUUIzLWcrFnKCrvvo_rHamiE/edit?usp=sharing

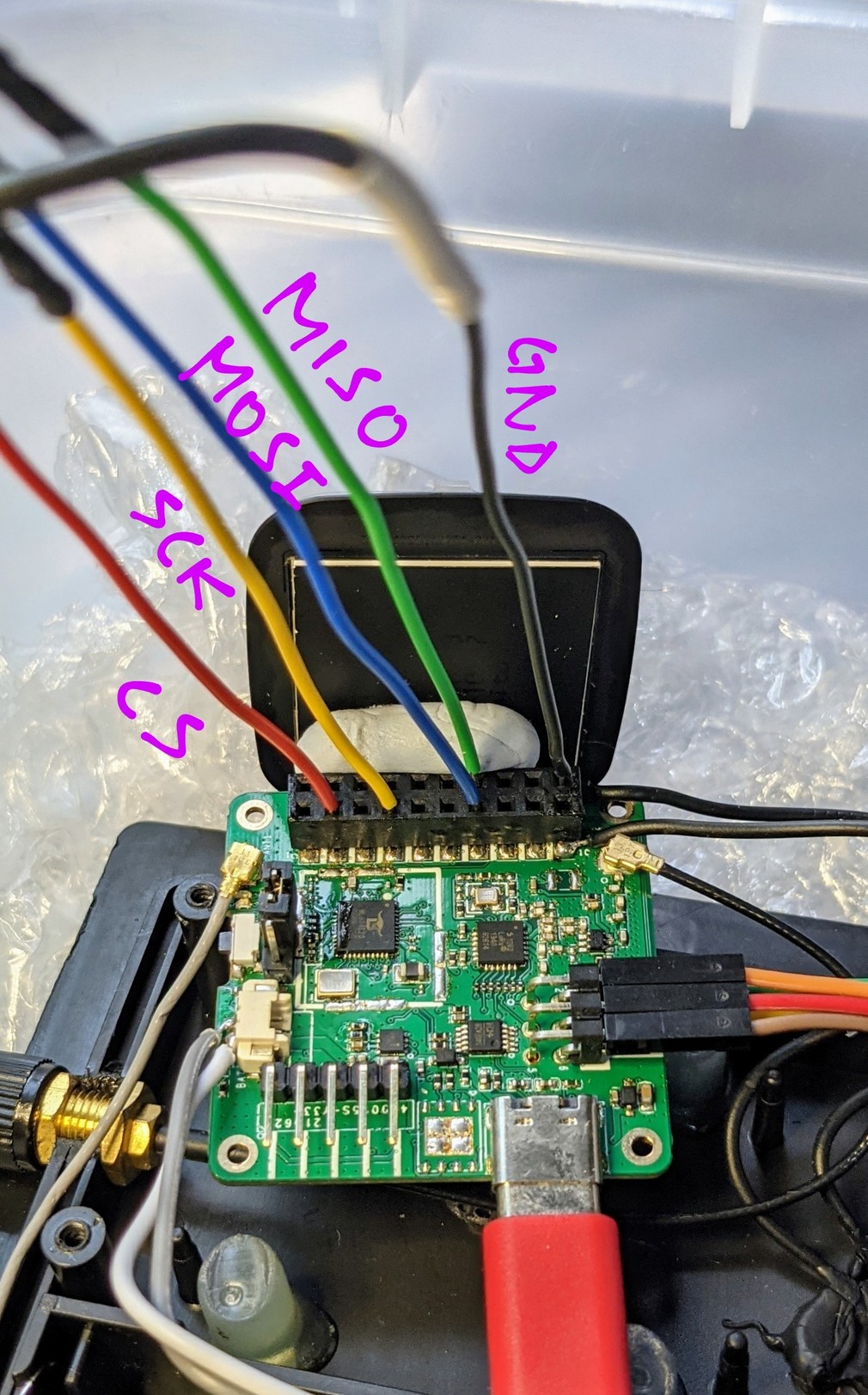

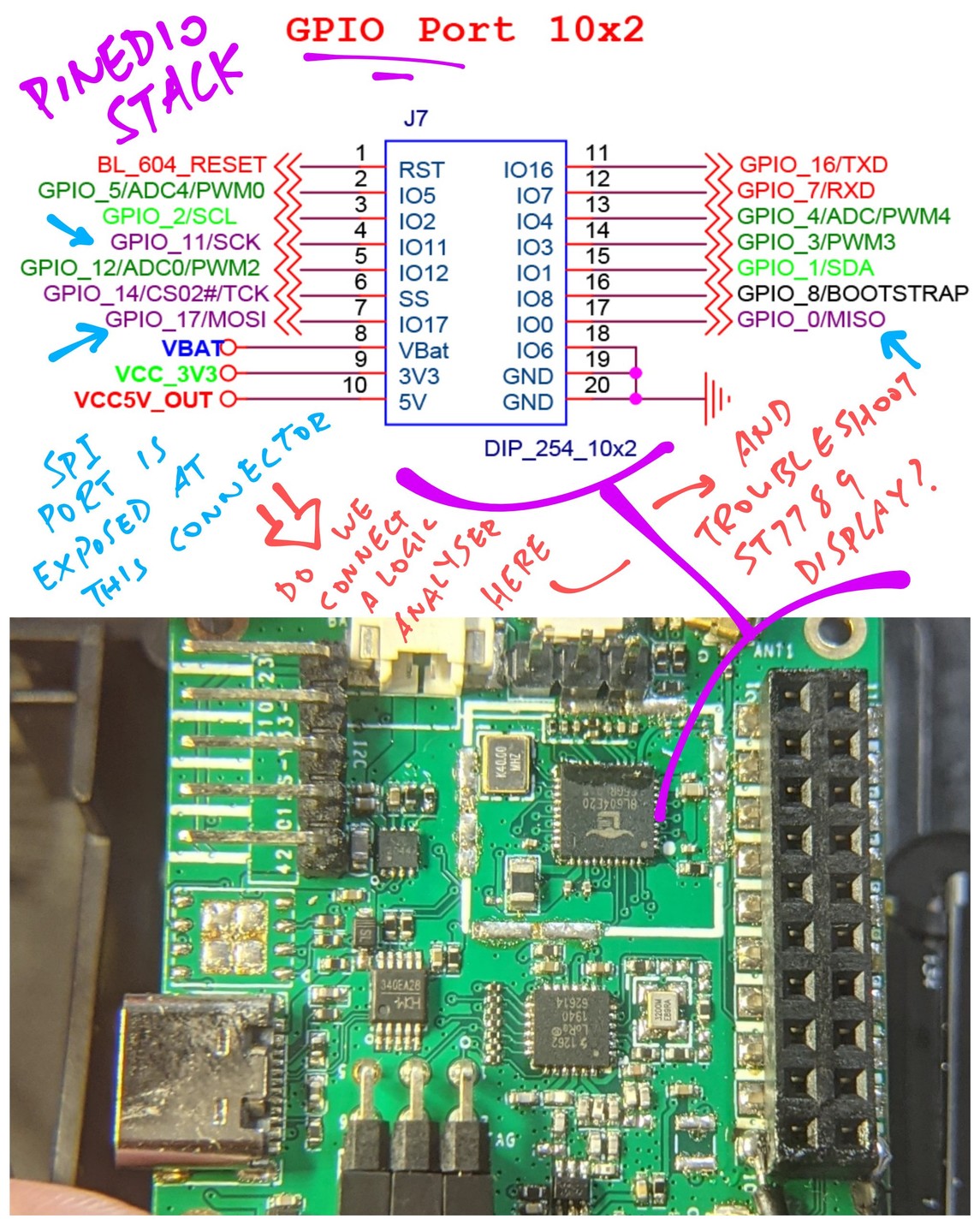

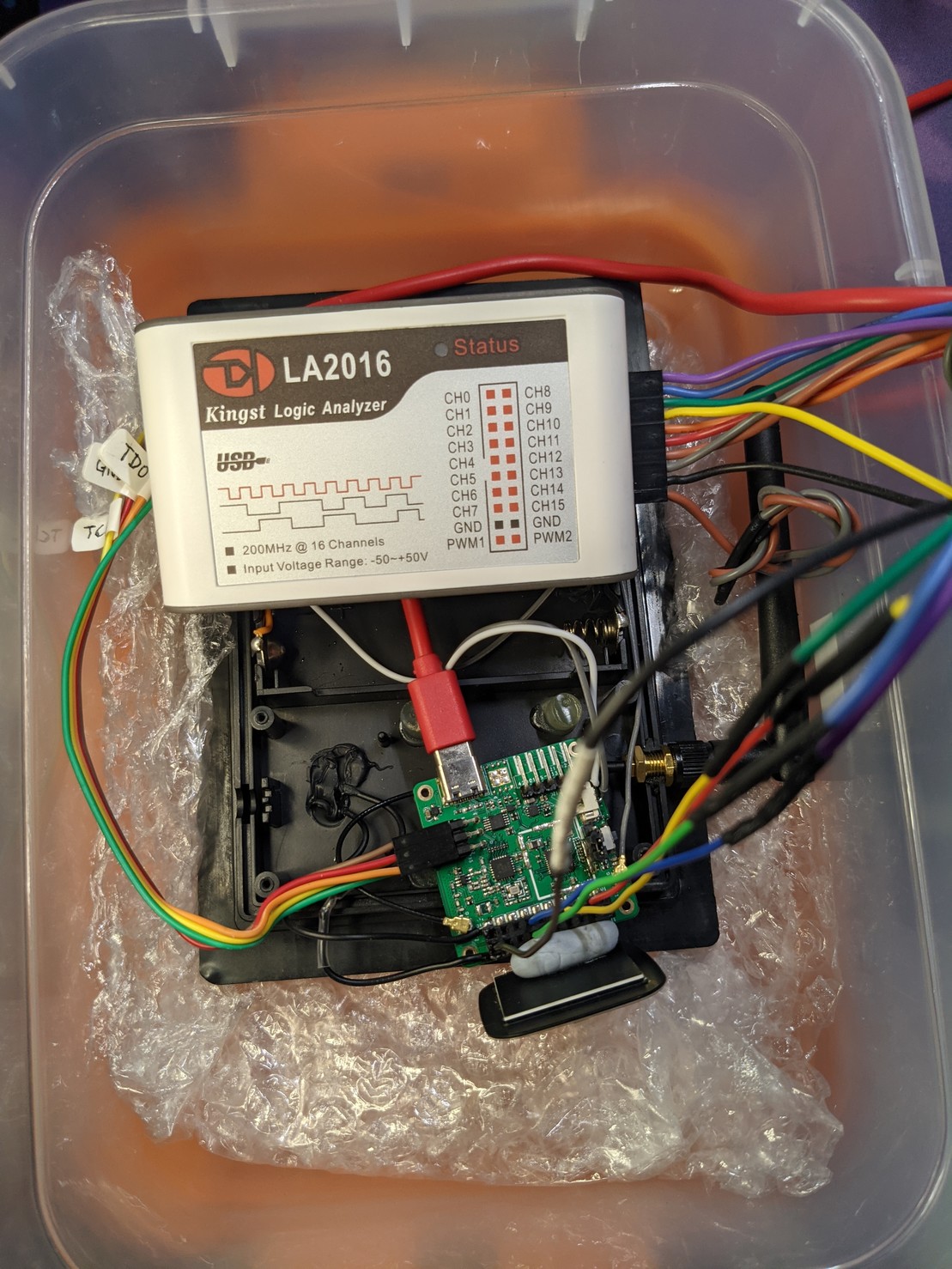

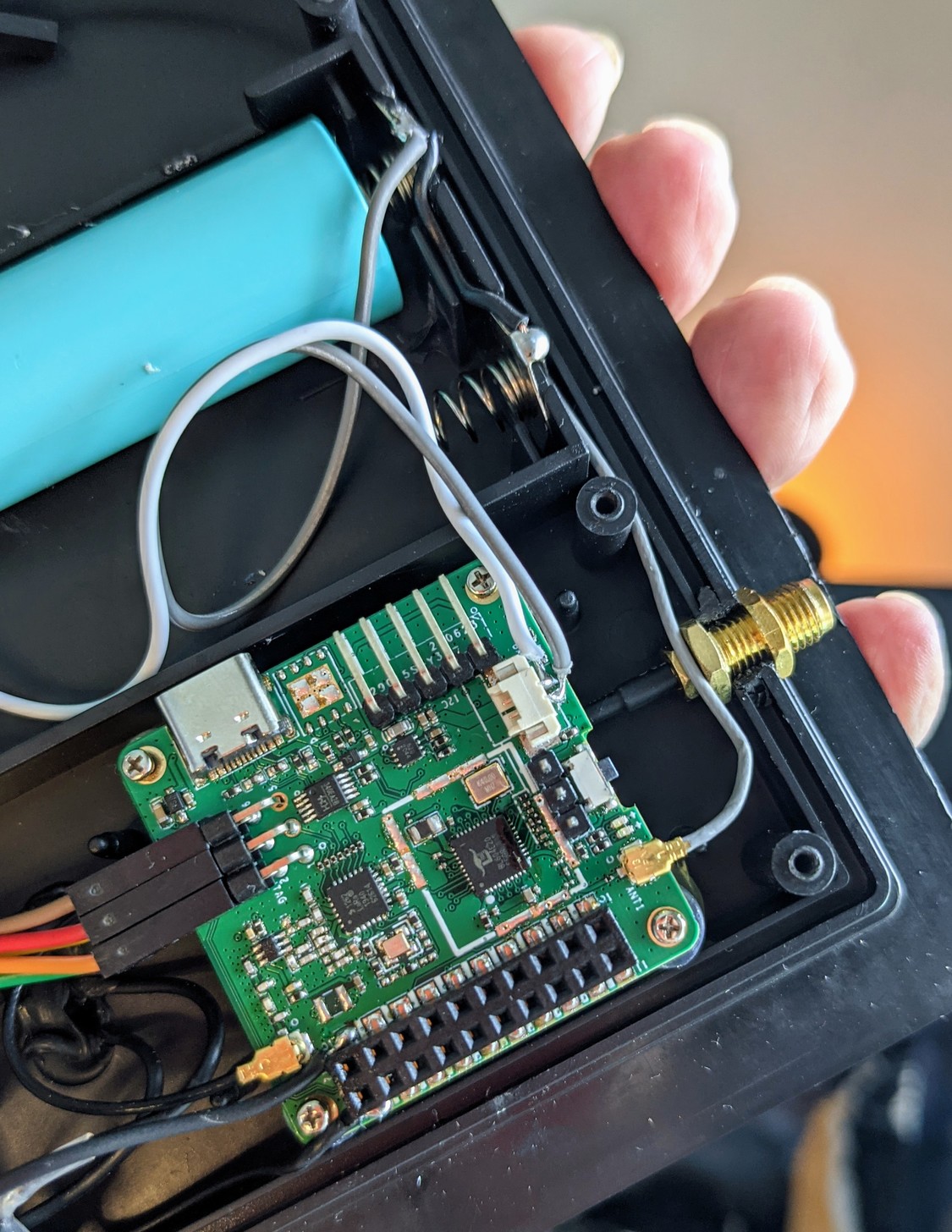

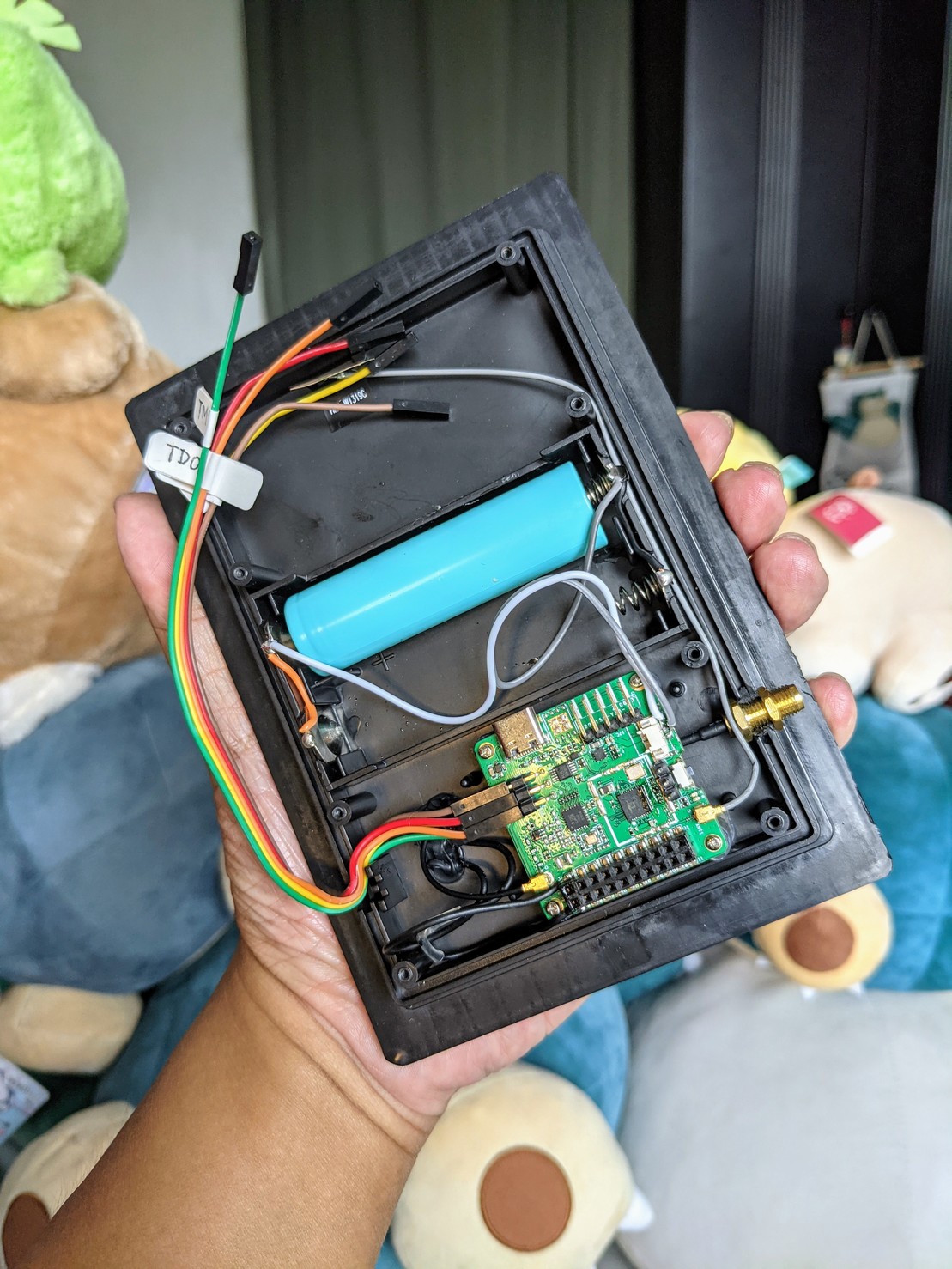

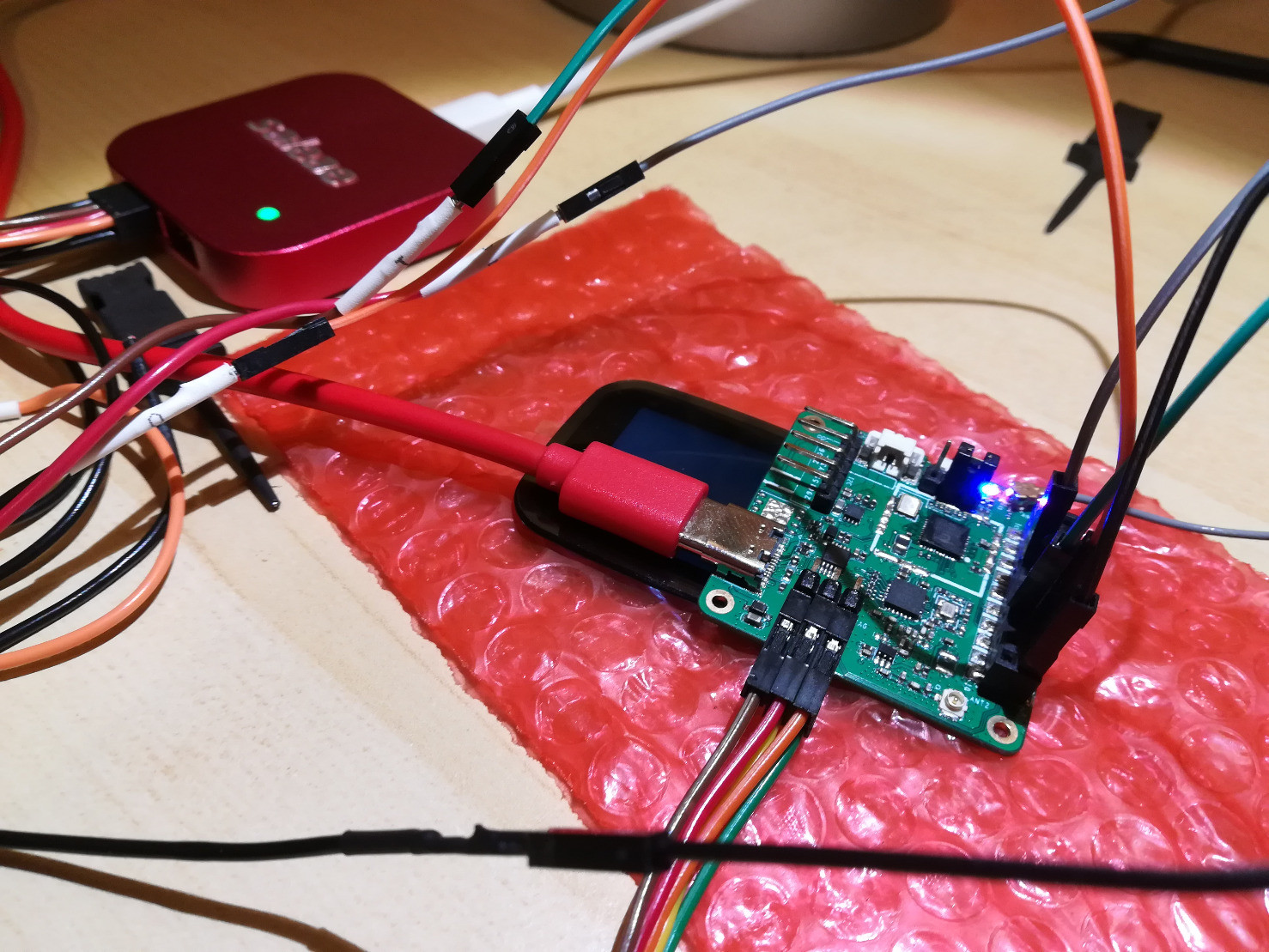

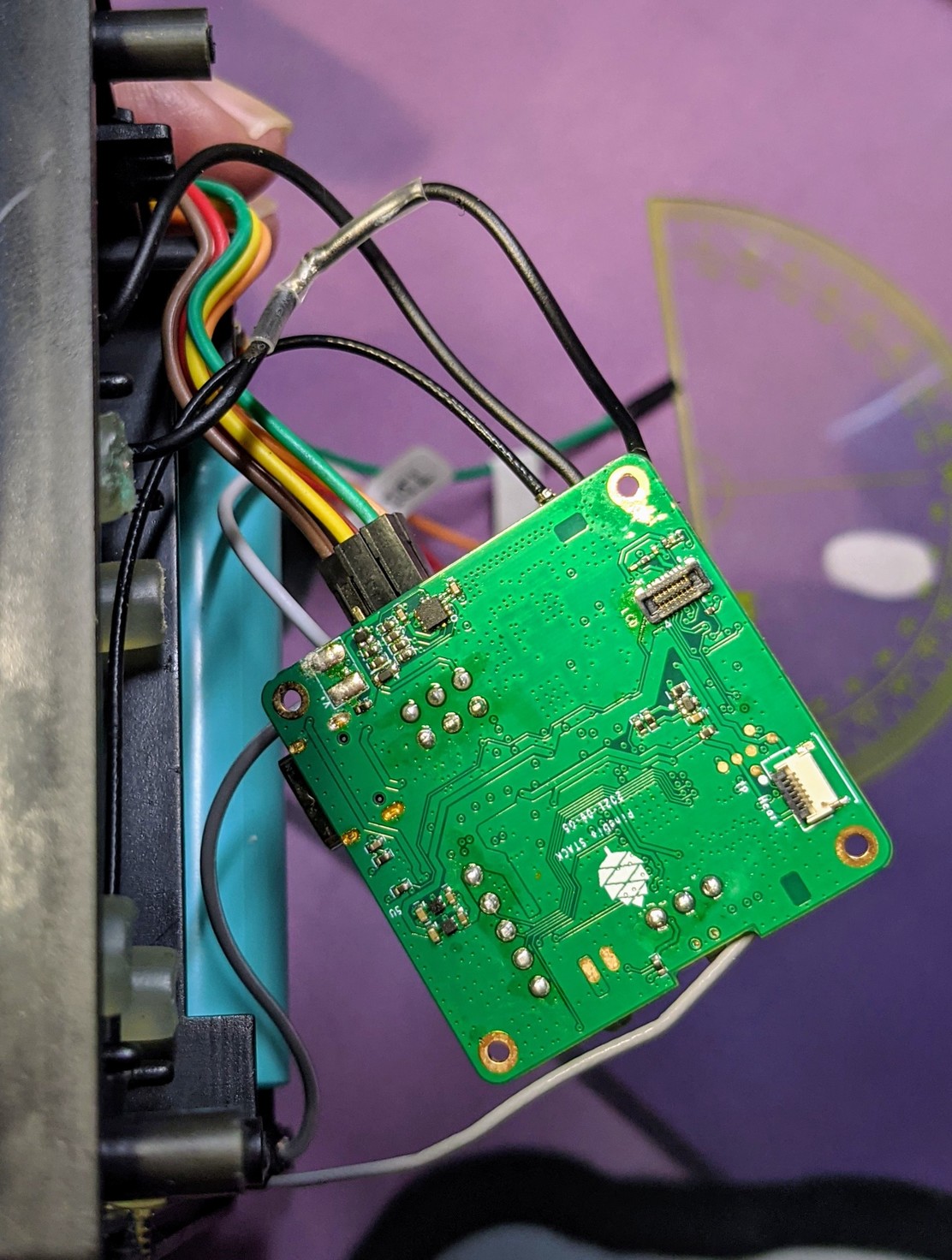

#PineDio Stack SPI Port is exposed on the GPIO Connector ... So we connect our Logic Analyser there

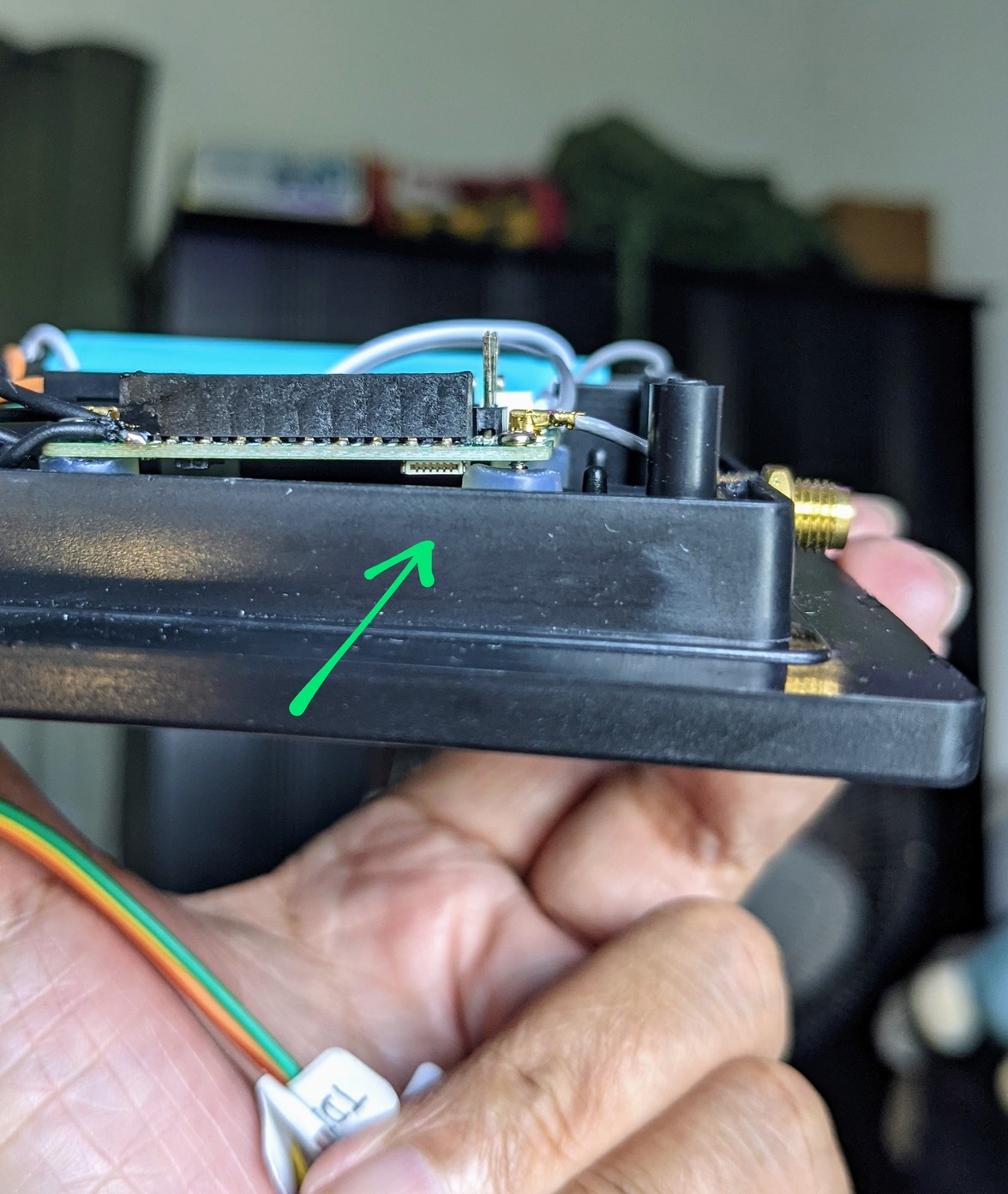

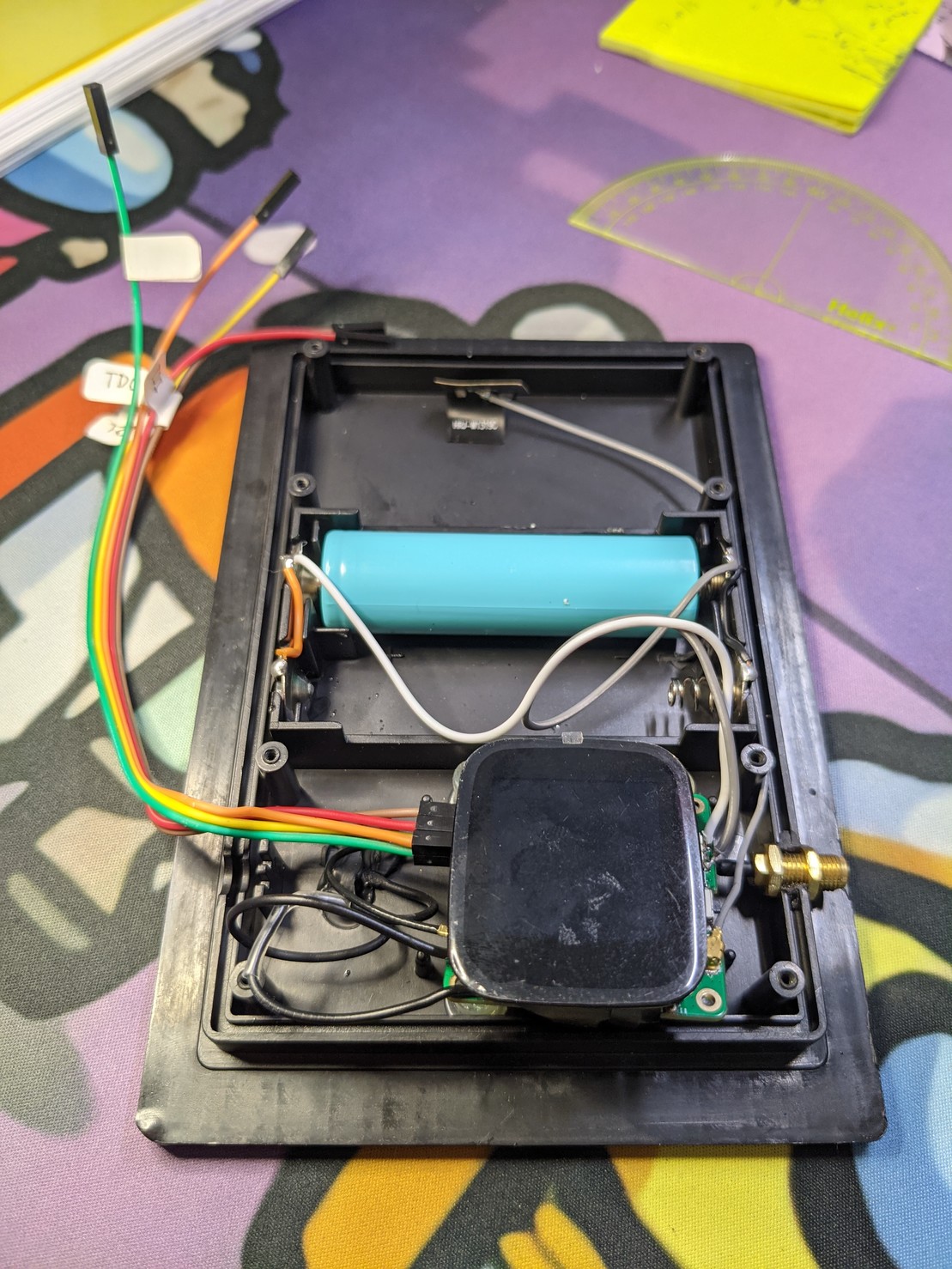

ST7789's CS Pin (GPIO 20) is not exposed on #PineDio Stack's GPIO Connector ... So we use GPIO 5 to Shadow the CS Pin

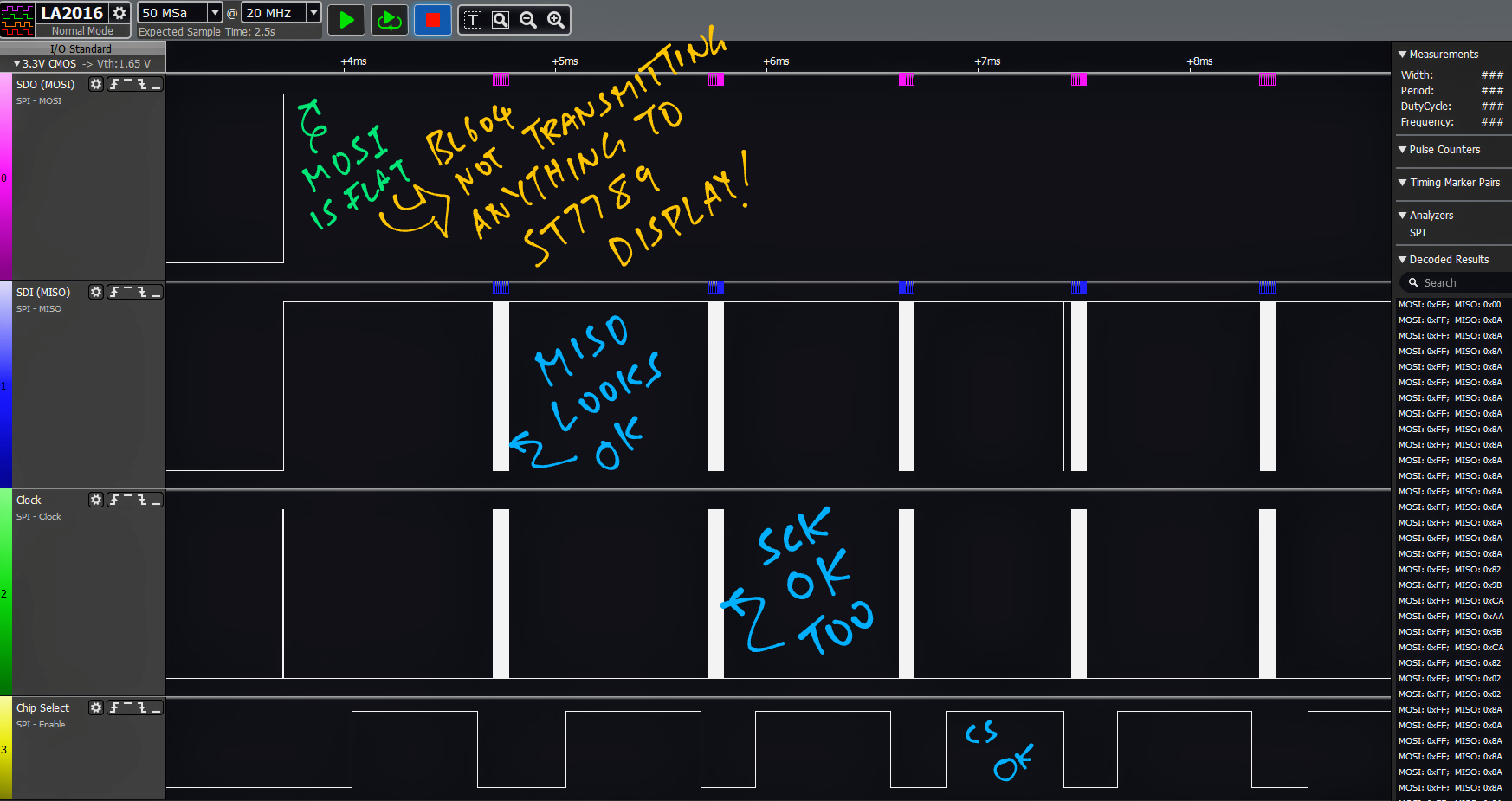

#BL604 doesn't seem to be transmitting anything to ST7789 on SPI MOSI (GPIO 17) ... Let's try a different pin for MOSI
Which is super strange because GPIO 4 is supposed to be MISO on #BL604 ... Not MOSI! 🤔

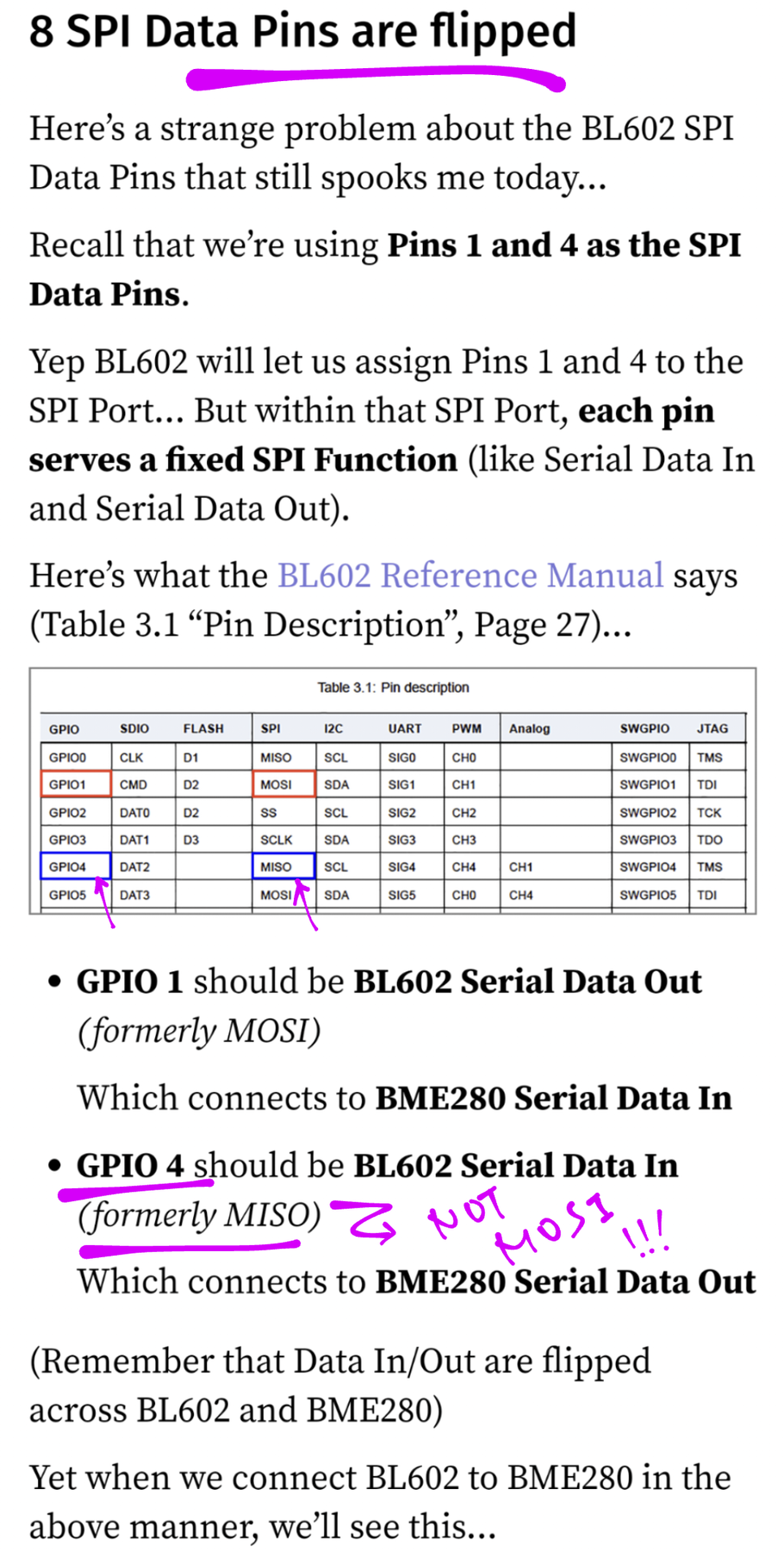

https://lupyuen.github.io/articles/spi#spi-data-pins-are-flipped

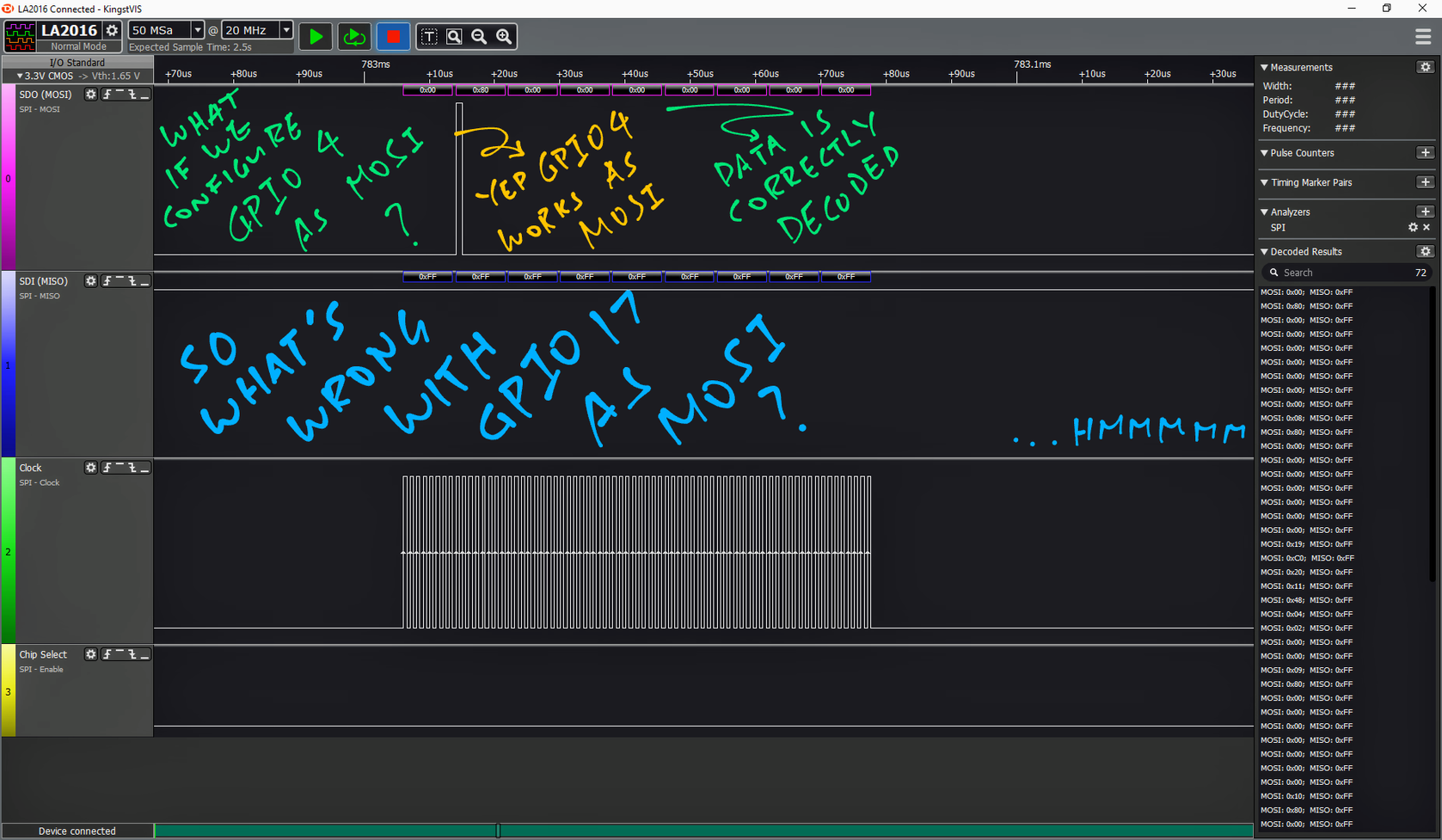

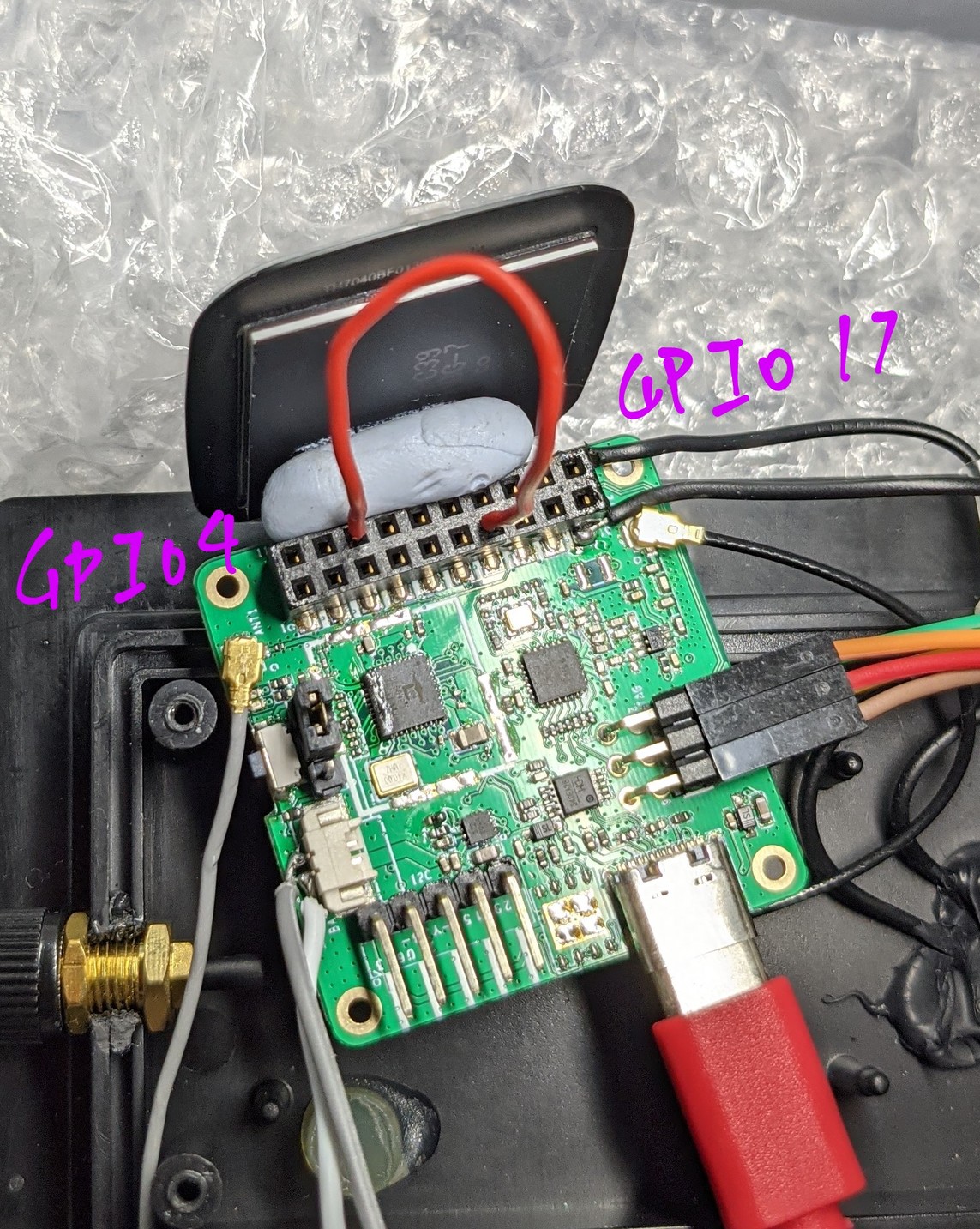

GPIO 4 works as MOSI but not GPIO 17 ... What if we connect GPIO 4 to 17? Nope still nothing on the #PineDio Stack ST7789 Display 🤔

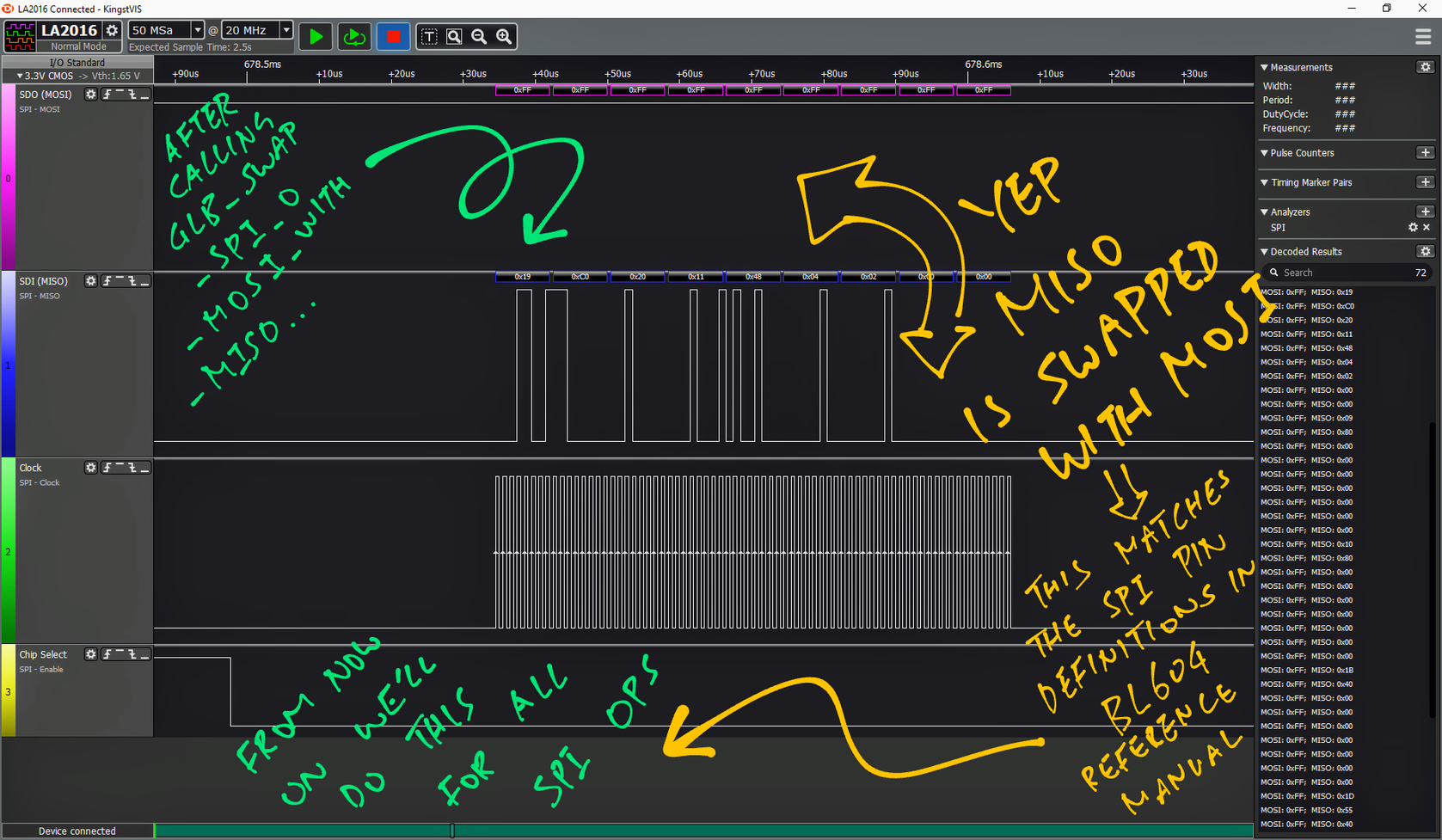

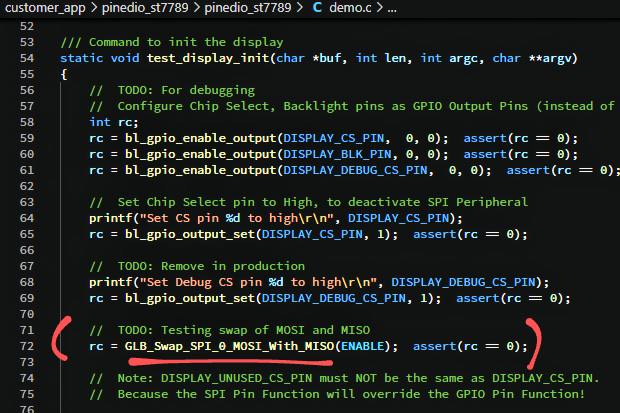

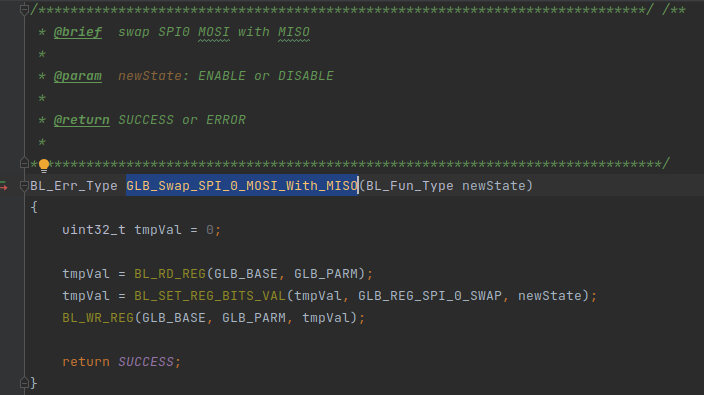

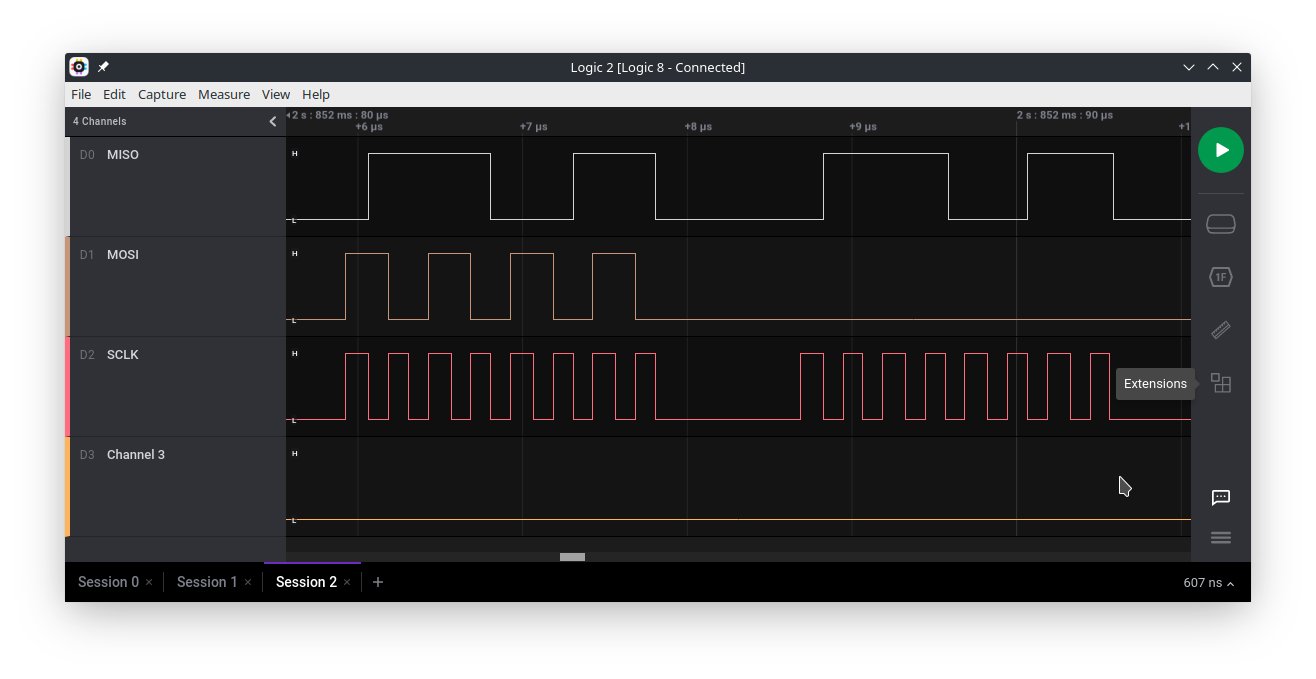

Yep MISO and MOSI are now swapped! This matches the SPI Pin Definitions in #BL604 Reference Manual ... So from now on we'll always call GLB_Swap_SPI_0_MOSI_With_MISO
