Let's send some Sensor Data to the Cloud over #LoRaWAN ... From #PineDio Stack BL604 to The Things Network!

https://lupyuen.github.io/articles/lorawan2#whats-next

Follow these steps to connect our RAKwireless #LoRaWAN Dev Gateway to #TheThingsNetwork

https://docs.rakwireless.com/Product-Categories/WisGate/RAK7244C/Quickstart/#connecting-to-the-things-network-ttn

With the new version of #TheThingsNetwork, we need to edit "global_conf.json" and update the "server_address" ... This is missing from the RAKWireless docs

https://www.thethingsnetwork.org/docs/the-things-stack/migrate-to-v3/migrate-gateways/

Updated LoRaWAN Gateway Settings may be found in the #TheThingsNetwork Console

https://www.thethingsindustries.com/docs/gateways/udp/

We should see Heartbeat Messages transmitted by our LoRaWAN Gateway to #TheThingsNetwork ... Maybe messages from nearby devices!

https://www.thethingsindustries.com/docs/getting-started/events/

To receive Sensor Data, we create an Application in #TheThingsNetwork

https://www.thethingsindustries.com/docs/integrations/adding-applications/

Under our #TheThingsNetwork Application, add an End Device ... LoRaWAN Version MUST be "1.0.2" and "1.0.2 Rev B" ... Or we will get Message Integrity Code errors!

https://www.thethingsindustries.com/docs/getting-started/migrating/major-changes/#lorawan-support

Let #TheThingsNetwork generate the Security Keys for our LoRaWAN End Device

https://www.thethingsindustries.com/docs/devices/adding-devices/

Why set LoRaWAN Version to "1.0.2 Rev B"? Because #TheThingsNetwork has been upgraded recently ... Setting the incorrect LoRaWAN Version will cause Message Integrity Code errors! (I tried)

https://www.thethingsindustries.com/docs/getting-started/migrating/major-changes/#lorawan-support

From our #TheThingsNetwork Device, copy the AppEUI, DevEUI and AppKey ... We'll enter these into the LoRaWAN Firmware for #PineDio Stack

https://www.thethingsindustries.com/docs/devices/adding-devices/

To join #PineDio Stack BL604 to #TheThingsNetwork, boot the LoRaWAN Firmware and enter these commands

https://github.com/lupyuen/bl_iot_sdk/blob/pinedio/customer_app/pinedio_lorawan#lorawan-commands-for-the-things-network

#PineDio Stack BL604 successfully joins #TheThingsNetwork thru our LoRaWAN Firmware yay! 🎉

https://github.com/lupyuen/bl_iot_sdk/blob/pinedio/customer_app/pinedio_lorawan#lorawan-commands-for-the-things-network

Now we send data from #PineDio Stack BL604 to #TheThingsNetwork ... Here are the commands for our LoRaWAN Firmware

https://github.com/lupyuen/bl_iot_sdk/blob/pinedio/customer_app/pinedio_lorawan#lorawan-commands-for-the-things-network

#TheThingsNetwork receives the data transmitted by #PineDio Stack BL604 thru our LoRaWAN Firmware yay! 🎉

https://github.com/lupyuen/bl_iot_sdk/blob/pinedio/customer_app/pinedio_lorawan#lorawan-commands-for-the-things-network

We have just transmitted data from #PineDio Stack BL604 to #TheThingsNetwork Cloud over LoRa ... For Free! (Assuming we have The Things Network coverage)

https://www.thethingsnetwork.org/

I hope you have good #TheThingsNetwork Wireless Coverage in your area ...Coverage in Singapore is so spotty 😭

https://www.thethingsnetwork.org/map

@lupyuen I work quite a lot with LoraWAN, to read room temperature data. It should be understood that if you need coverage, you install gateways yourself... Otherwise, your devices/users may be without coverage without notice.

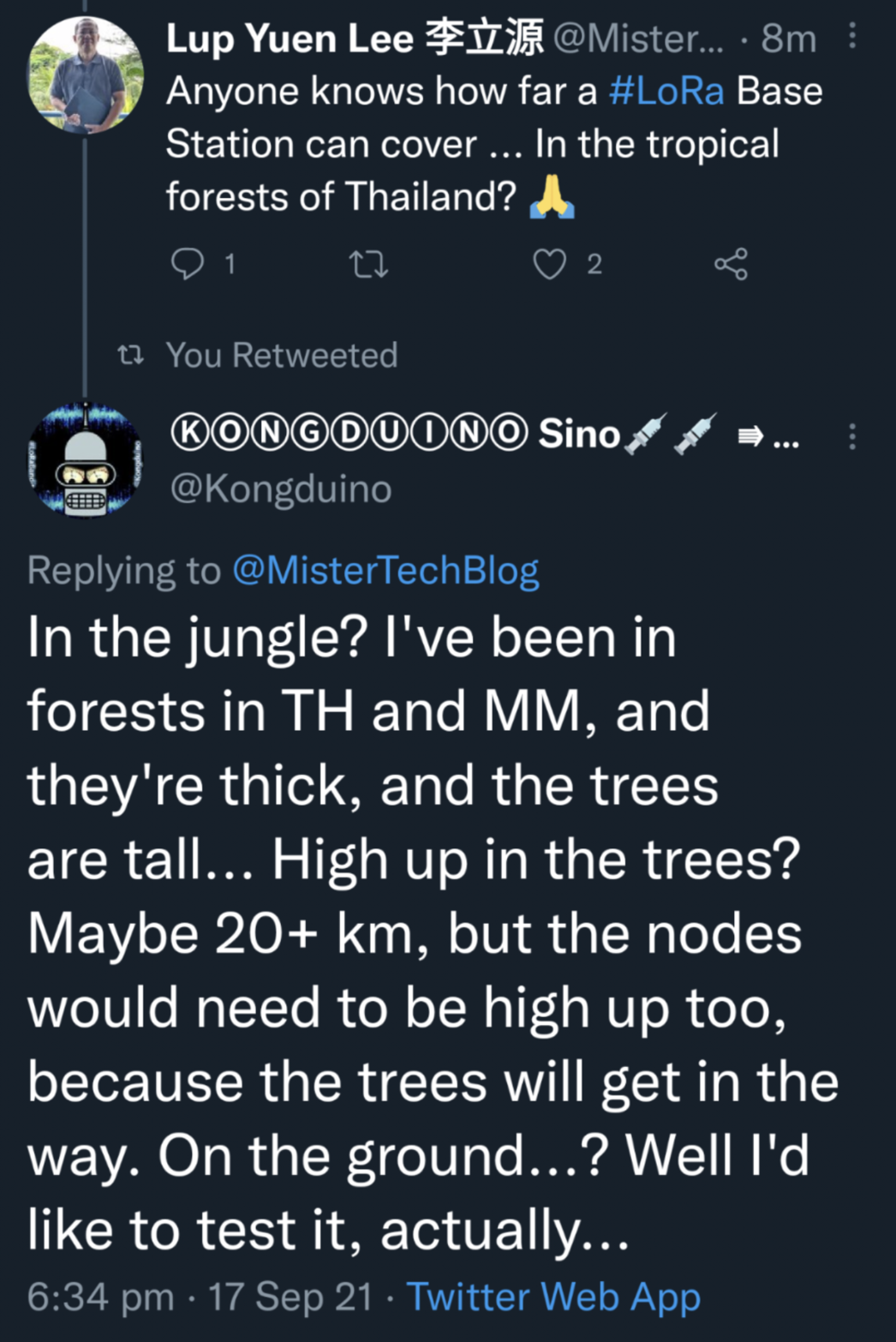

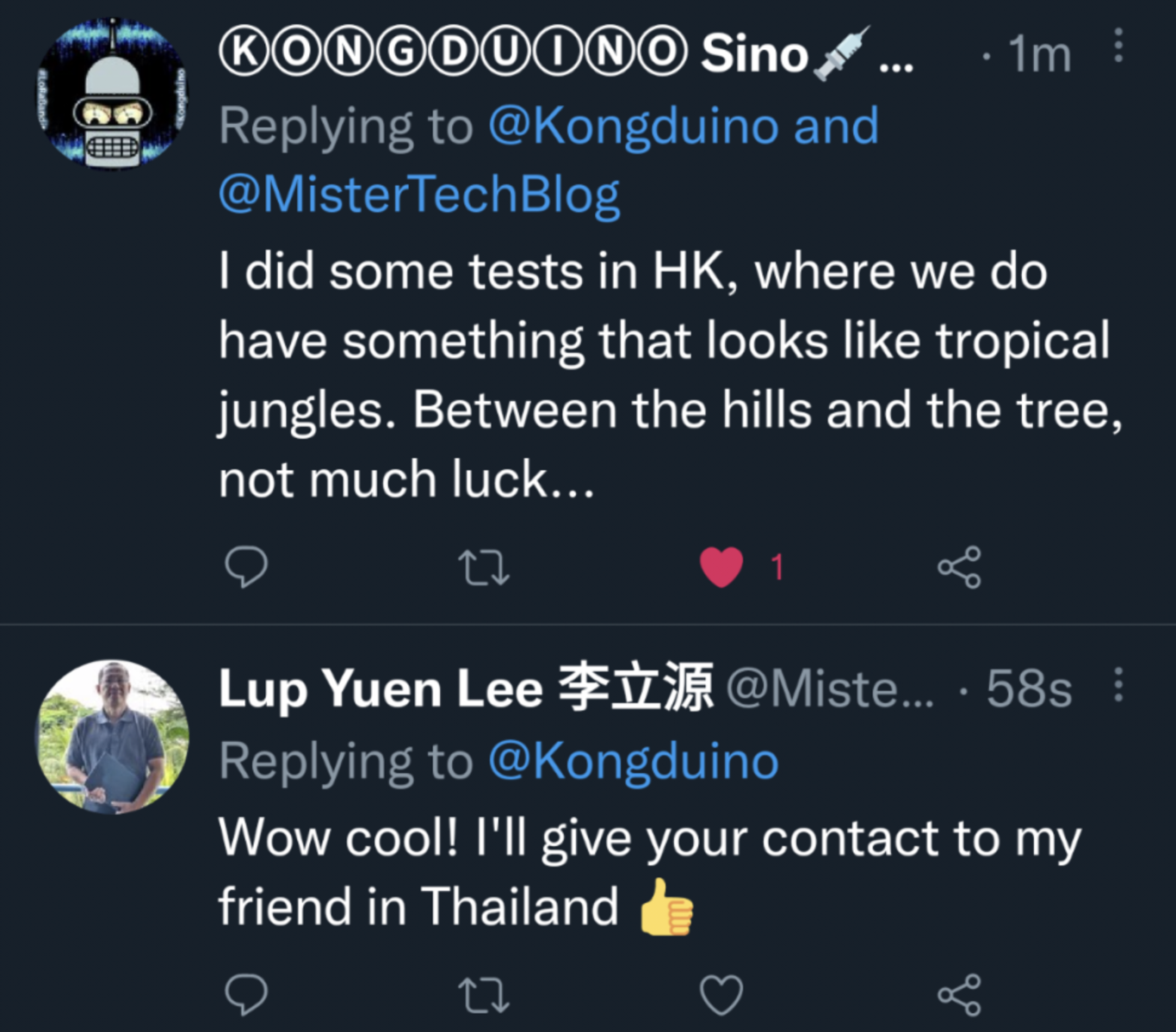

@niclas @lupyuen how well does Lora work through forest cover?
