Habr

E-paper Arduino термометр на ESP-IDF

Наверное каждый любитель электроники имеет в запасе модули приобретенные на всякий случай. Так несколько лет назад я не смог пройти мимо 1.5 дюймового E-Ink дисплея, лежащего на витрине радиомагазина. Через некоторое время нашлось для него применение. В статье ESP32 E-Paper Thermometer описывается, как отображать окружающую температуру, измеренную с помощью датчика DS18B20. Проект выполнен в Arduino IDE. Но я решил пройти "Путь самурая" и портировать код на ESP-IDF. Пришлось немного повозится с библиотеками для работы с дисплеем. На этом мой путь не окончился, как говорят: "У самурая нет цели, есть только путь". И я решил, что было бы неплохо добавить еще несколько сенсоров, измеряющих влажность, давление, CO2, а потом отправлять эти данные по MQTT. В том же радиомагазине был приобретен фанерный домик-конструктор со светодиодным ночником. А в другом магазине - модуль с датчиками. Таким образом родилась идея сконструировать Micro-smart-home. На передней части домика расположен дисплей на пластиковых стойках. А с другой стороны расположен модуль с сенсорами.

habr.com/ru/articles/912324/

#esp32 #espidf #Arduino #adafruit #ds18b20 #CCS811 #BMP280 #Si7021 #eink

E-paper Arduino термометр на ESP-IDF

Наверное каждый любитель электроники имеет в запасе…

Хабр
smallsolar

Of course its time to add some sensors to my #glassHouse / #coldFrame - I've built a wireless sensor (uses an old 868Mhz sensor network I have at home) and finally got round to writing a ds18b20 driver for it (git.solarcene.community/smalls).

It will have 2 temperature sensors - one will be installed 'outside' the frame while the other will be inside - but I'm not sure where - any thoughts?

#gardening
#solar
#solarsensors
#DS18B20

ukhasnet_ds18bs20

ukhasnet_ds18bs20

Solarcene Gitea
in_sympathy

Finally had some fun with my Arduino Uno R4 WiFi that I bought to learn some of this stuff and make an environment analyzer.

#ChatGPT wrote the code, I soldered and connected sensors - modern day teamwork 😆.

Had to find my old DS18B20 for temp reading because temperature sensors got way too hot on both BME280 and AHT21.

#arduino #arduinocloud #smarthome #coding #chatgpt #arduinouno #bme280 #DS18B20 #ENS160 #AHT21

Jan 15, 2025, 21:20 · · · 0 · 0
maexchen1

@h0g3R

Wo hast Du denn den #mhz19 gekauft?

Es sind immer mehr gefälschte #Elektronik Baueile auf dem Markt.

Oft wird das nicht mal wie beim #DS18B20 erkannt.

Aus dem Grund kaufe ich nur noch bei renommierten Elektronik Händlern wobei da der blaue Claus natürlich raus ist

Jan 03, 2025, 09:55 · · · 0 · 0
Oli

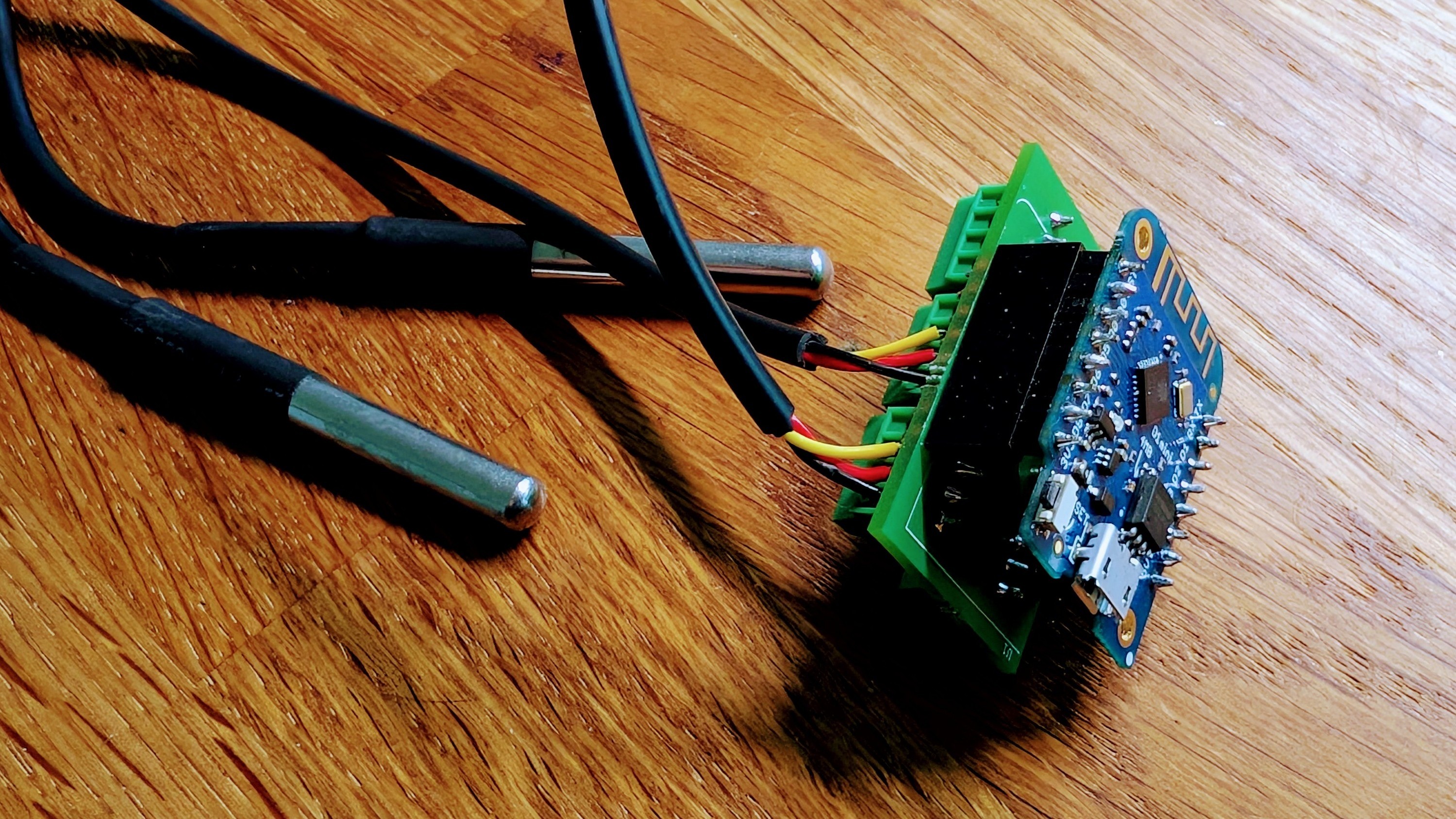

Ist doch ganz nett geworden. Kleines Shield zum Anschluss von bis zu sechs OneWire Temperatur-Sensoren.

#esp8266 #onewire #espeasy #ds18b20

Habr

Основные принципы организации микроклимата в закрытом грунте

Привет! Сегодня я хотел бы рассказать, как измерить температуру и влажность воздуха в твоей теплице. Поехали!

habr.com/ru/articles/861016/

#esp32 #esphome #homeassistant #ds18b20 #dht22 #scd40

Основные принципы организации микроклимата в закрытом грунте

основной герой нашей статьи Привет! Сегодня я хотел…

Хабр
🤘 Dunnerkeil

#DIY #esphome #homeassistant

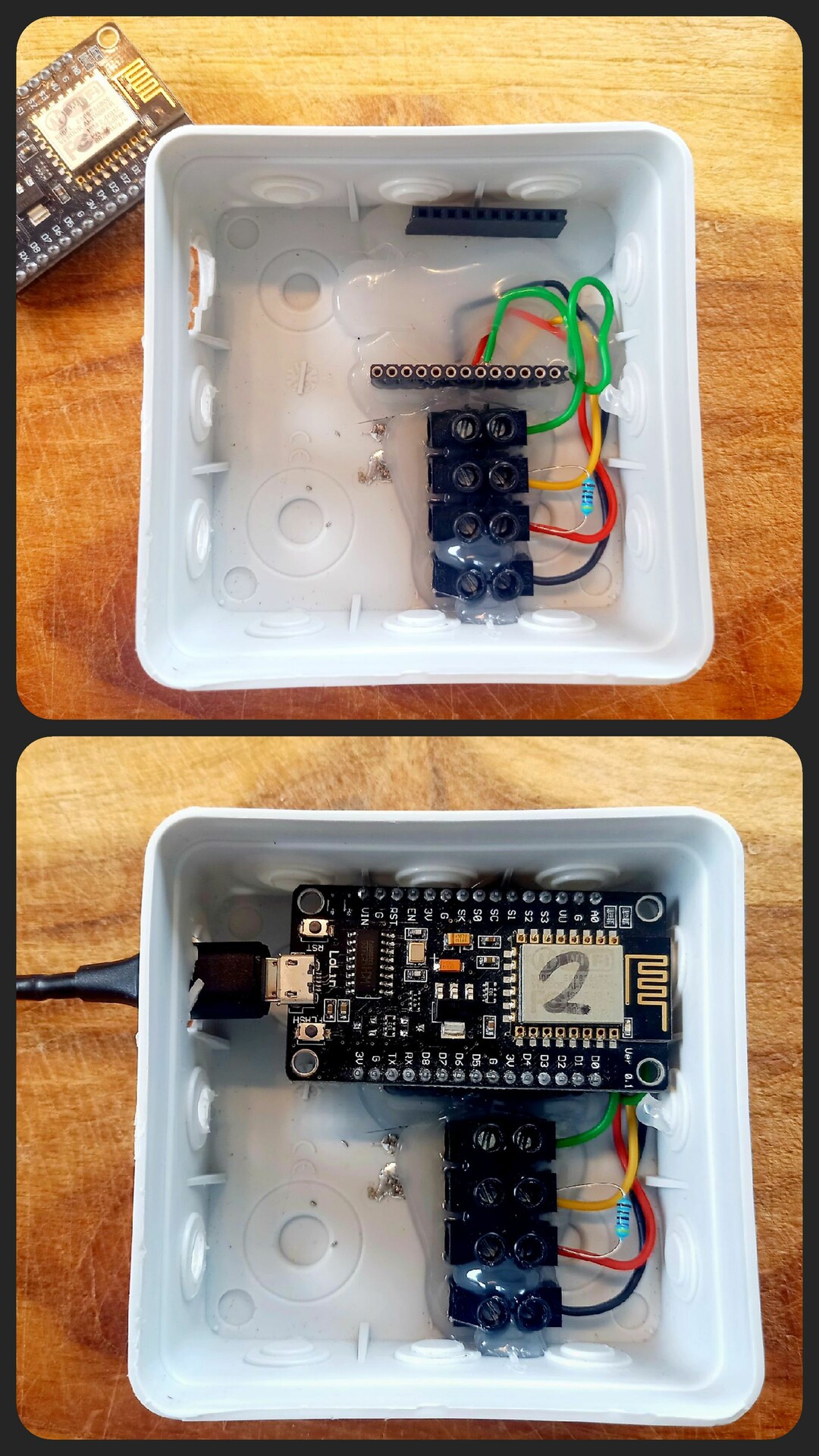

Heißkleber sei Dank hält alles zusammen. Fehlt nur noch die montierten #DS18b20 Temperaturfühler.

smallsolar

@PlumpCat @xenogon be wary of #DS18B20 as I think the market has been flooded with clones/fakes so it’s now hard to know if you can link the chip with the datasheet

Marcus Jaschen

#Wochenrückblick Ausgabe 21 (2023-52).

Diesmal mit den Erkenntnissen, dass es einen riesigen Markt mit Fake-Versionen des #DS18B20 gibt, dass die Liste aller deutschen Worte (inkl. Varianten durch Flexion usw.) über 1,9 Millionen Einträge hat (und wofür man diese Liste einsetzen kann) und warum „Weiße Weihnachten“ (was eine bescheuerte Phrase BTW) hier in der Region so selten sind. Außerdem gibt es einem Mini-#Jahresrückblick (den großen braucht ihr nicht, weil ich euch ja schon wöchentlich füttere).

marcusjaschen.de/blog/2023/202

Rückblick Kalenderwoche 2023-52

Eine kleine Zusammenfassung der Dinge, die mir in der…

www.marcusjaschen.de
David Andersen

I ended up programming this one with Adafruit's #circuitpython, because they have a very easy to use #ds18b20 driver and wifi driver. My preferred #Rust framework, #embassy, doesn't yet have a 1wire implementation and it looked a little gross to write it for a one-off temp sensor. I'll return to this some time later; for now, I have a thermometer located near my thermostat that I can poke and get a reading from whenever I want.

Also: The pi pico is a power hog but dang is it handy.

denis

44.2°C (111.5°F) here in #CamasWA Probably the peak for today. Measured using Acurite Iris Weather Station as well as homebrew #DS18B20 sensor. #WAwx #ORwx #weather

Josip Retro Bits

Hi everyone, in this video I connected a digital temperature sensor (DS18B20) to Commodore 64 and did some non-scientific measurements :) To make this work, I implemented a 1-wire protocol in the assembly. Enjoy :)

youtu.be/bwWxnF6vDwE

#c64 #ds18b20 #8bit #commodore64 #temperature #sensor #assembly #retrocomputing #1-wire #programming #asm #sensors

Fran 🇦🇷

I found an interesting alternative to #DS18B20, the MAX31820.

It seems to be a 3.3V version of the DS18B20, which should work fine with the #ESP32 I'm using.

It is also cheaper and in stock at DigiKey. I'm going to give it a try 👍

analog.com/en/products/MAX3182

digikey.com/en/products/detail

#electronics #sensor #1wire

Fran 🇦🇷

So, I searched on DigiKey for real DS18B20s to include on my next order... and what a surprise!

Almost all variants of the Maxim DS18B20 are out of stock (as expected), but they are now selling those chinese clones at almost the same price as the authentic ones! 🤦‍♂️

digikey.com/en/products/detail

Crazy world. That seems to be how the supply chains are working in 2023. 🤪

#DS18B20 #sensor #fake #electronics #embedded #ChipShortage #DigiKey #Maxim

Fran 🇦🇷

Today I'm going down the rabbit hole of DS18B20 chip fakes 🤨.

A quick test of a batch of fakes I bought here in Argentina (because those seem to be the only ones you can buy on the local market) revealed that they measure about -2 C with respect to a real Maxim DS18B20. What a 💩.

I trust the Maxim one because it is within 0.2 C of some Sensirion sensors I have here.

#DS18B20 #sensor #fake #electronics #embedded #ChipShortage

cryptax

I've had temperature sensors at home for years, in each room, based on #ESP8266 + a sensor (#DHT11, or #DS18B20 - depends).

One of the issues has always been calibration. It's burdensome to have to adjust the code of each individual sensor with calibration data + it can change after months.

Today, I've set up a simple web server with a #REST api I can use to set #calibration data. The web server is on at power up. Once I've calibrated I can disable it and just post temperature via #MQTT.
