Come join me (the "monster" 😂) as we dive deep into the #WiFi Code inside #RISCV #BL602 (the "wifi chip" 😂)

https://lupyuen.github.io/articles/pinecone#notes

Many thanks to this hilarious (but truthful) comment on #BL602 😂

https://qoto.org/@lupyuen/106454770223645891

Here's the #BL602 #WiFi Firmware ... Let's find out how it connects to a WiFi Access Point

https://github.com/lupyuen/bl_iot_sdk/blob/master/customer_app/bl602_demo_wifi/bl602_demo_wifi/main.c#L363

#BL602 connects to #WiFi Access Point ... By notifying the WiFi Manager

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/wifi_mgmr_api.c#L40-L84

#BL602 #WiFi Manager runs as a Background Task ... Here's how we send requests to WiFi Manager

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/wifi_mgmr.c#L1332-L1343

#BL602 #WiFi Manager runs a State Machine ... That connects to the WiFi Access Point in the Background Task

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/wifi_mgmr.c#L702-L745

To connect to a #WiFi Access Point, #BL602 WiFi Manager sends a request to the Lower MAC Firmware

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/bl_msg_tx.c#L722-L804

LMAC is the Lower MAC Firmware that runs on the #BL602 Radio Hardware

https://www.ceva-dsp.com/product/rivierawaves-wi-fi-platforms/

CEVA has an interesting list of customers

https://csimarket.com/stocks/markets_glance.php?code=CEVA#:~:text=Included%20among%20our%20licensees%20are,%2C%20RDA%2C%20Renesas%2C%20Rockchip%2C

#BL602 #WiFi Manager sends Connect Request to LMAC Firmware thru another Message Queue

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/bl_msg_tx.c#L315-L371

#BL602 #WiFi Manager talks to LMAC Firmware via Message Queue ... Let's find out how it works

https://www.ceva-dsp.com/product/rivierawaves-wi-fi-platforms/

#BL602 #WiFi Driver talks to LMAC Firmware ... By writing to a Message Buffer and triggering an Interrupt

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/ipc_host.c#L139-L171

#BL602 #WiFi Driver triggers LMAC Interrupt ... By writing to Address 0x4400 0000 ... Let's see what's at 0x4400 0000

https://github.com/lupyuen/bl_iot_sdk/blob/master/components/bl602/bl602_wifidrv/bl60x_wifi_driver/reg_ipc_app.h#L66-L69

But 0x4400 0000 is NOT documented in #BL602 Reference Manual! 😲 Now we know a secret ... BL602 talks to LMAC Firmware at Address 0x4400 0000 🤫

https://github.com/bouffalolab/bl_docs/blob/main/BL602_RM/en/BL602_BL604_RM_1.2_en.pdf

Moving away from LMAC Firmware (since we got no code) ... Let's study the mysterious #BL602 #WiFi Library "libwifi" ... Which has been decompiled into C by BraveHeartFLOSSDev

https://github.com/BraveHeartFLOSSDev/bl602nutcracker1

#BL602 Firmware starts the #WiFi Stack ... By creating a Background Task that runs wifi_main ... Let's hunt for wifi_main

https://github.com/lupyuen/bl_iot_sdk/blob/master/customer_app/bl602_demo_wifi/bl602_demo_wifi/main.c#L729-L747

"wifi_main" lives in the mysterious #BL602 #WiFi Library "libwifi" ... Let's study the decompiled C code (thanks to BraveHeartFLOSSDev and Ghidra)

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.c#L32959-L33006

#BL602 "wifi_main" calls "ke_evt_schedule" to do #WiFi Tasks ... GitHub Search shows that "ke_evt_schedule" is also defined in ... AliOS! 😲

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.c#L28721-L28737

But does "ke_evt_schedule" really come from AliOS? Not quite ... "ke_evt_schedule" actually comes from ... CEVA RivieraWaves! 😲

https://github.com/mclown/AliOS-Things/blob/master/platform/mcu/bk7231u/beken/ip/ke/ke_event.c#L203-L231

Now the #BL602 #WiFi Stack gets clearer ... We're actually reading the WiFi Driver Code by CEVA RivieraWaves! 💡

https://www.ceva-dsp.com/product/rivierawaves-wi-fi-platforms/

Lesson Learnt: GitHub Search is our very good friend for Reverse Engineering! 👍

https://github.com/search?l=C&o=asc&q=ke_evt_schedule&s=indexed&type=Code

The AliOS / RivieraWaves code we saw earlier was for Beken BK7231U WiFi + BLE SoC ... Is it related to #BL602? 🤔

http://www.bekencorp.com/en/goods/detail/cid/13.html

AliOS for Beken BK7231U WiFi SoC contains LMAC Firmware Code ... Is this the same LMAC Firmware that runs on #BL602's #WiFi Radio? 🤔 Super Exciting!

https://github.com/lupyuen/AliOS-Things/tree/master/platform/mcu/bk7231u/beken/ip/lmac/src

From Now On: We shall read and understand the AliOS / RivieraWaves Source Code ... While comparing it with the Decompiled Code for #BL602 libwifi ... Just to be sure that they are the same 🤝

https://github.com/lupyuen/AliOS-Things/tree/master/platform/mcu/bk7231u/beken/ip/ke

Back to ke_evt_schedule, the function in #BL602 #WiFi Driver Kernel that handles every WiFi Event ... Let's hunt for ke_evt_hdlr and discover the WiFi Events

https://github.com/lupyuen/AliOS-Things/blob/master/platform/mcu/bk7231u/beken/ip/ke/ke_event.c#L203-L231

Here are the #WiFi Event Handlers for #BL602 WiFi Kernel ... txl_payload_handle looks interesting ... Let's hunt for it

https://github.com/lupyuen/AliOS-Things/blob/master/platform/mcu/bk7231u/beken/ip/ke/ke_event.c#L78-L138

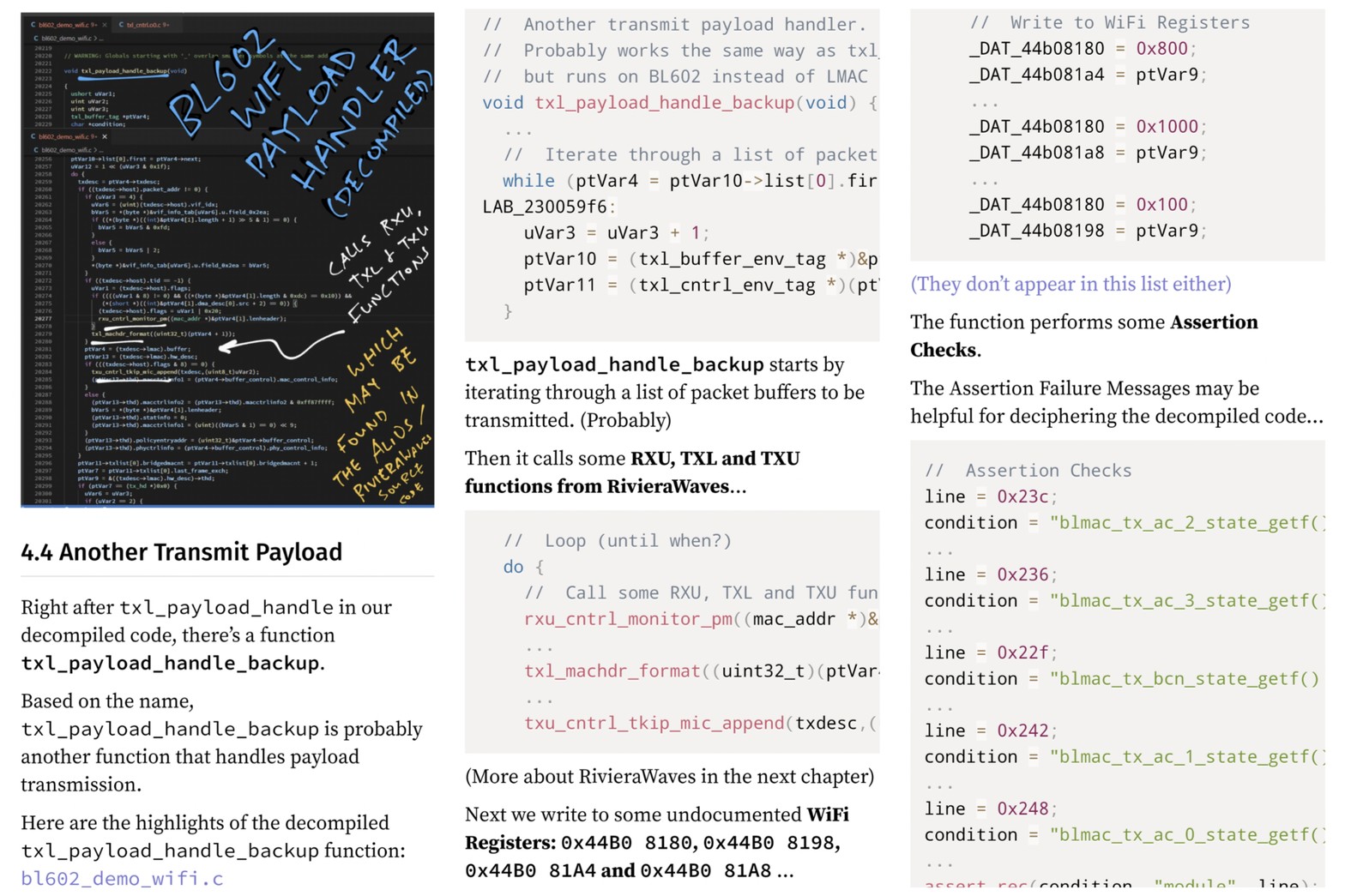

txl_payload_handle handles #BL602 #WiFi Payloads by doing ... nothing! But txl_payload_handle_backup seems to be the right function that handles WiFi Payloads 🤔

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.c#L20203-L20398

#BL602 #WiFi Payload Handler calls rxu, txl and txu functions ... Fortunately these are defined in the AliOS / RivieraWaves Source Code we saw earlier

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.c#L20220-L20398

Here's the Decompiled #BL602 #WiFi Supplicant that handles WiFi Authentication ... Decompiled code looks readable

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.c#L29805-L29860

Thankfully #BL602 #WiFi Library libwifi was compiled with Assertions Enabled ... Makes Reverse Engineering simpler 👍

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.c#L38512-L38609

Let's do Quantitative Analysis of the Decompiled #BL602 #WiFi Demo Firmware ... How many lines of code do we actually need to Reverse Engineer ... Now that we've found some matching source files?

https://github.com/lupyuen/bl602nutcracker1/blob/main/bl602_demo_wifi.txt

Load the Decompiled #BL602 #WiFi Functions into a spreadsheet ... For easier crunching

Google Sheets: https://docs.google.com/spreadsheets/d/1C_XmkH-ZSXz9-V2HsYBv7K1KRx3RF3-zsoJRLh1GwxI/edit?usp=sharing

Matching the Decompiled #BL602 #WiFi Functions with AliOS / RivieraWave Source Code ... And identifying the differences

Google Sheets: https://docs.google.com/spreadsheets/d/1C_XmkH-ZSXz9-V2HsYBv7K1KRx3RF3-zsoJRLh1GwxI/edit?usp=sharing
